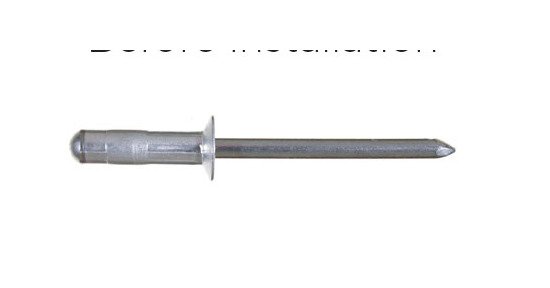

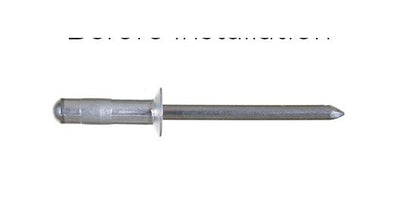

U-Fix Aluminum/Stainless Steel Rivet 4.0mm x 11.3mm 120° Countersunk Head

Name: U-Fix Aluminum/Stainless Steel Rivet 4.0mm x 11.3mm 120° Countersunk Head
Brand: Ornit USA
SKU: UFI-8f2afb
Price: 29.99 USD
Availability: OutOfStock

SKU:UFI-8f2afb

Versatile 4.0mm x 11.3mm Aluminum/Stainless Steel Rivet w/ 120° Countersunk Head

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Meet your fastening needs with the U-Fix Aluminum/Stainless Steel Rivet. This precision-engineered rivet features a 4.0mm diameter and 11.3mm body length, perfect for various applications. Constructed with Aluminum Alloy ALmg 2.5 body and Stainless Steel AISI 430/434 mandrel, it offers exceptional shear and tensile forces. The 120-degree countersunk head design ensures a flush finish, enhancing aesthetics and functionality.

Product Specifications

Nominal Dimensions Body Length

11.3 mm | 0.445 in

Nominal Dimensions Diameter

4.0 mm | 5/32 in

Nominal Dimensions Drillhole Size

4.1 mm | 0.161 in

Nominal Dimensions Head Diameter

6.3 mm | 0.248 in

Nominal Dimensions Head Thickness

0.90 mm | 0.035 in

Nominal Dimensions Mandrel Diameter

2.25 mm | 0.089 in

Nominal Dimensions Maximum Grip Range

7.9 mm | 0.311 in

Nominal Dimensions Minimum Grip Range

2.8 mm | 0.110 in

Nominal Forces Nominal Shear Force

102 kgf | 224 lbf

Nominal Forces Nominal Tensile Force

136 kgf | 299 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 2.5

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

6000

Technical Specs Head Style

120 Degree Countersunk

Technical Specs Mandrel Finish

Natural

Technical Specs Mandrel Material

Stainless Steel AISI 430/434 or Equivalent

U-Fix Aluminum/Stainless Steel Rivet 4.0mm x 11.3mm 120° Countersunk Head
