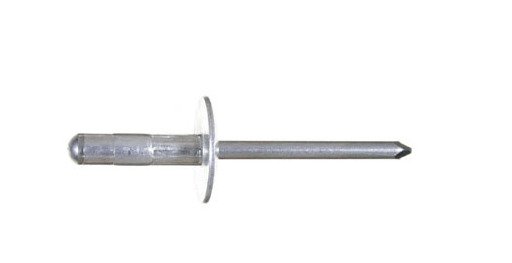

U-Fix Aluminum/Stainless Steel X-Large Head Rivet 4.0mm x 12.7mm
U-Fix Aluminum/Stainless Steel X-Large Head Rivet 4.0mm x 12.7mm
SKU:UFI-1ac4c8
Enhance fastening efficiency with the U-Fix Aluminum/Stainless Steel Rivet - a durable solution for diverse applications!
Regular price
$36.99
Regular price
Sale price
$36.99
Unit price
per
Initiate Order
U-Fix Aluminum/Stainless Steel X-Large Head Rivet 4.0mm x 12.7mm
$36.99
Quantity: 1
Claim Your Seller Account
U-Fix Aluminum/Stainless Steel X-Large Head Rivet 4.0mm x 12.7mm
$36.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The U-Fix Aluminum/Stainless Steel X-Large Head Rivet features a 4.0mm diameter and 12.7mm body length, combining strength and durability for various applications. Crafted from Aluminum Alloy ALmg 2.5 with a Stainless Steel AISI 430/434 mandrel, it offers exceptional shear and tensile forces. Its extra-large head ensures secure fastening, meeting stringent procurement standards. Ideal for industrial, automotive, and construction projects, this rivet guarantees reliable performance and longevity.
Product Specifications
Nominal Dimensions Body Length
12.7 mm | 0.500 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.5 mm | 0.059 in
Nominal Dimensions Mandrel Diameter
2.25 mm | 0.089 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
