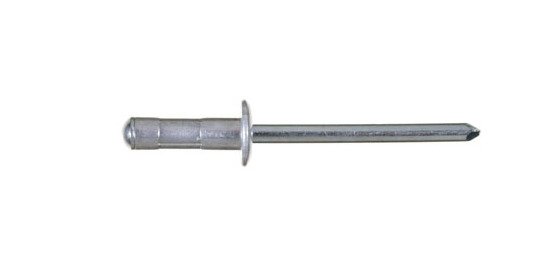

U-Fix Aluminum Steel Dome Head Rivets - 4.0mm x 9.5mm
U-Fix Aluminum Steel Dome Head Rivets - 4.0mm x 9.5mm
SKU:UFI-38e452
Highly versatile U-Fix Aluminum Steel Dome Head Rivets for secure and reliable main cabin applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
U-Fix Aluminum Steel Dome Head Rivets - 4.0mm x 9.5mm
$29.99
Quantity: 1
Claim Your Seller Account
U-Fix Aluminum Steel Dome Head Rivets - 4.0mm x 9.5mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The U-Fix Aluminum Steel Dome Head Rivets are expertly designed with a versatile multi-grip function, making them perfect for various applications in main cabin installations. With a durable Aluminum Alloy ALmg 2.5 body and a Zinc Plated Chromium VI Free low carbon steel mandrel, these rivets provide exceptional shear and tensile strength. Compliant with stringent industry standards, these rivets offer reliability and performance for both consumer and institutional procurement needs.
Product Specifications
Nominal Dimensions Body Length
9.5 mm | 0.374 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.9 mm | 0.311 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.083 in | 0.088 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
7000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
