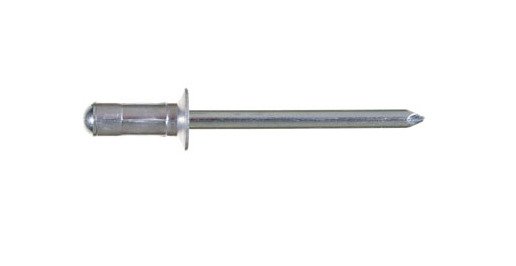

U-Fix Aluminum Steel Rivet - 3.2mm x 11.1mm, 120° Countersunk Head
U-Fix Aluminum Steel Rivet - 3.2mm x 11.1mm, 120° Countersunk Head
SKU:UFI-f58730
Get secure and durable fastening with the U-Fix Aluminum Steel Rivet - 3.2mm x 11.1mm, 120° Countersunk Head. Ideal for industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
U-Fix Aluminum Steel Rivet - 3.2mm x 11.1mm, 120° Countersunk Head
$59.99
Quantity: 1
Claim Your Seller Account
U-Fix Aluminum Steel Rivet - 3.2mm x 11.1mm, 120° Countersunk Head
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

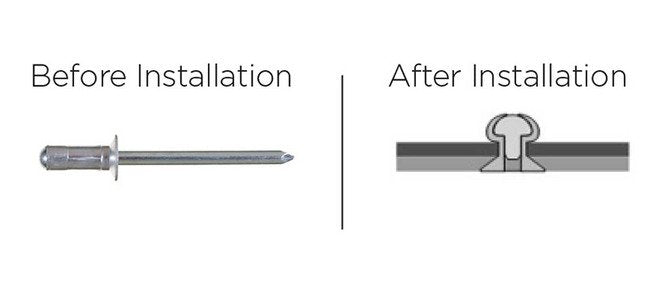

The U-Fix Aluminum Steel 120 Degree Countersunk Head Rivet is a reliable fastening solution designed for industrial applications. With a body material of Aluminum Alloy ALmg 2.5 and a sturdy Low Carbon Steel mandrel, this rivet ensures durability and secure connections. It features a 3.2mm diameter, 11.1mm body length, and can handle nominal shear forces of up to 70 kgf and nominal tensile forces of 93 kgf. Compliant with industry standards, this rivet is ideal for projects requiring strength, precision, and reliability.
Product Specifications
Nominal Dimensions Body Length
11.1 mm | 0.437 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
5.35 mm | 0.211 in
Nominal Dimensions Head Thickness
0.85 mm | 0.033 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
7.9 mm | 0.311 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
70 kgf | 154 lbf
Nominal Forces Nominal Tensile Force
93 kgf | 204 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Countersunk Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
