U-Fix Large Head Aluminum Steel Rivet
U-Fix Large Head Aluminum Steel Rivet
SKU:UFI-3b5521
Enhance your projects with the durable U-Fix Large Head Aluminum Steel Rivet. Ideal for construction, automotive, and aerospace industries.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
U-Fix Large Head Aluminum Steel Rivet
$45.99
Quantity: 1
Claim Your Seller Account
U-Fix Large Head Aluminum Steel Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

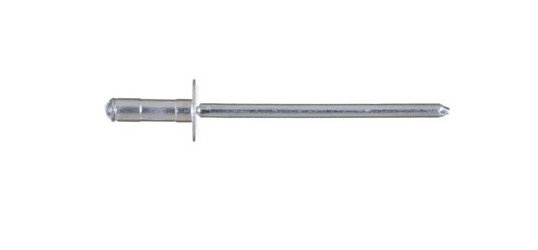

Upgrade your riveting operations with the U-Fix Large Head Aluminum Steel Rivet. This high-quality rivet features a 3.2mm diameter, 8.0mm body length, and a large head for enhanced grip strength. Crafted from Aluminum Alloy ALmg 2.5 with a natural finish, it ensures durability and resistance to corrosion. The low carbon steel mandrel with Zinc Plated Chromium (Cr) VI Free finish provides reliable tensile and shear forces. With a minimum grip range of 0.8mm and meeting stringent industry standards, this rivet is perfect for construction, automotive, and aerospace applications.
Product Specifications
Nominal Dimensions Body Length
8.0 mm | 0.315 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
8.25 mm | 0.325 in
Nominal Dimensions Head Thickness
1.0 mm | 0.039 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
4.8 mm | 0.189 in
Nominal Dimensions Minimum Grip Range
0.8 mm | 0.031 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
8000
Technical Specs Head Style
Large Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
