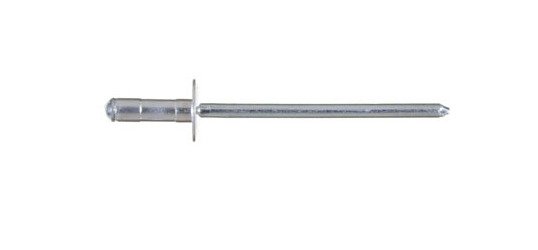

U-Fix Large Head Aluminum Steel Rivet 3.2mm x 11.1mm
U-Fix Large Head Aluminum Steel Rivet 3.2mm x 11.1mm
SKU:UFI-5dd25b
High-performance U-Fix Large Head Aluminum Steel Rivet for sturdy and reliable fastening, meets industry standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
U-Fix Large Head Aluminum Steel Rivet 3.2mm x 11.1mm
$59.99
Quantity: 1
Claim Your Seller Account
U-Fix Large Head Aluminum Steel Rivet 3.2mm x 11.1mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

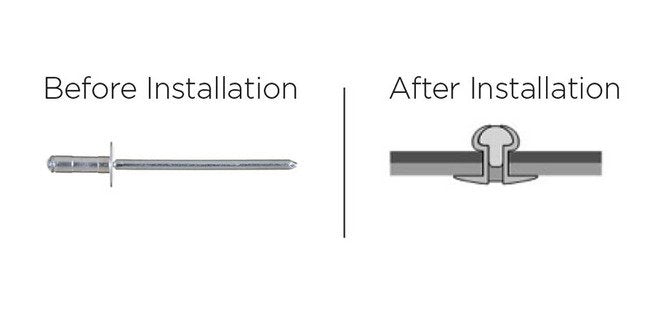

The U-Fix Large Head Aluminum Steel Rivet boasts a diameter of 3.2mm and a body length of 11.1mm, making it ideal for a wide range of applications. Crafted from durable Aluminum Alloy ALmg 2.5 with a Natural finish, it ensures both strength and corrosion resistance. The Low Carbon Steel mandrel, Zinc Plated Chromium (Cr) VI Free, enhances its longevity. With a Large Head design and excellent grip range of 4.0mm to 7.9mm, it provides superior shear and tensile forces of 75kgf and 104kgf respectively, meeting stringent procurement standards.
Product Specifications
Nominal Dimensions Body Length
11.1 mm | 0.437 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
8.25 mm | 0.325 in
Nominal Dimensions Head Thickness
1.0 mm | 0.039 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
7.9 mm | 0.311 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
7000
Technical Specs Head Style
Large Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
