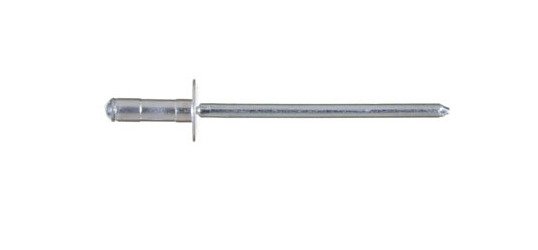

U-Fix Large Head Rivet
U-Fix Large Head Rivet
SKU:UFI-8895b1
Versatile and durable Large Head Rivet for secure cabin assembly. Aluminum Alloy body with Zinc Plated Chromium VI Free finish. Nominal forces: 116 kgf shear, 170 kgf tensile.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
U-Fix Large Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
U-Fix Large Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

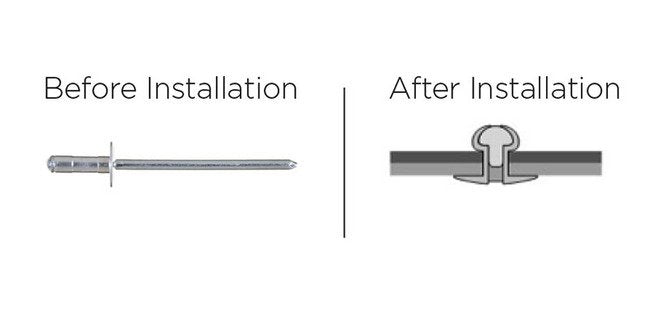

The U-Fix Large Head Rivet is a versatile and durable fastener designed for secure and reliable applications within main cabin interiors. With a body made of Aluminum Alloy ALmg 2.5 and a Zinc Plated Chromium VI Free finish, this rivet offers exceptional strength and corrosion resistance. Its large head and multi-grip function ensure easy installation and a secure hold. With a nominal shear force of 116 kgf and a nominal tensile force of 170 kgf, this rivet is ideal for a wide range of cabin assembly requirements.
Product Specifications
Nominal Dimensions Body Length
9.5 mm | 0.374 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
9.5 mm | 0.374 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.083 in | 0.088 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 375 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Large Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
