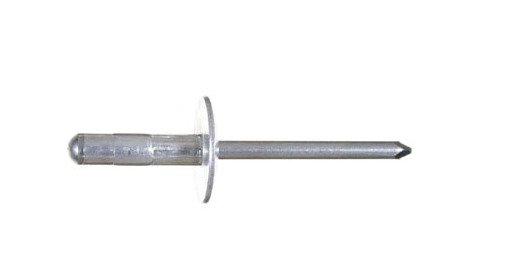

U-Fix X-Large Head Rivet, Aluminum/Stainless Steel, 3.2mm x 11.1mm

Name: U-Fix X-Large Head Rivet, Aluminum/Stainless Steel, 3.2mm x 11.1mm
Brand: Ornit USA
SKU: UFI-7c5172
Price: 29.99 USD
Availability: OutOfStock

SKU:UFI-7c5172

Elevate your projects with U-Fix Aluminum/Stainless Steel X-Large Head Rivet – Strong, reliable, and durable riveting solution.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

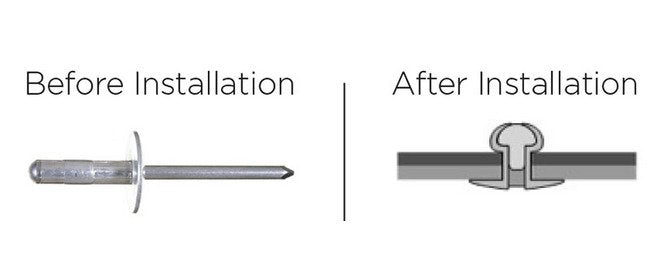

Enhance your projects with the U-Fix Aluminum/Stainless Steel X-Large Head Rivet, featuring a durable Aluminum Alloy body and Stainless Steel mandrel. With a 3.2mm diameter and 11.1mm body length, this rivet offers exceptional strength with a nominal shear force of 75kgf and nominal tensile force of 104kgf. Ideal for a wide grip range of 4.0mm to 7.9mm, it ensures secure fastening in various applications. Trust in its Ornit brand quality, natural finish, and extra-large head design for reliable performance.

Product Specifications

Nominal Dimensions Body Length

11.1 mm | 0.437 in

Nominal Dimensions Diameter

3.2 mm | 1/8 in

Nominal Dimensions Drillhole Size

3.3 mm | 0.130 in

Nominal Dimensions Head Diameter

9.5 mm | 0.374 in

Nominal Dimensions Head Thickness

1.20 mm | 0.047 in

Nominal Dimensions Mandrel Diameter

1.81 mm | 0.071 in

Nominal Dimensions Maximum Grip Range

7.9 mm | 0.311 in

Nominal Dimensions Minimum Grip Range

4.0 mm | 0.157 in

Nominal Forces Nominal Shear Force

75 kgf | 165 lbf

Nominal Forces Nominal Tensile Force

104 kgf | 230 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 2.5

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

7000

Technical Specs Head Style

Extra Large

Technical Specs Mandrel Finish

Natural

Technical Specs Mandrel Material

Stainless Steel AISI 430/434 or Equivalent

U-Fix X-Large Head Rivet, Aluminum/Stainless Steel, 3.2mm x 11.1mm
