U-Notch Grooving Blanks, 0.194/0.196 in Thickness
U-Notch Grooving Blanks, 0.194/0.196 in Thickness
SKU:GRO-30434c
Precision U-Notch grooving blanks for superior cutting performance and durability. Customize grades to suit diverse machining needs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
U-Notch Grooving Blanks, 0.194/0.196 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
U-Notch Grooving Blanks, 0.194/0.196 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The U-Notch Grooving Blanks in semi-finished style are precision-crafted with a thickness of 0.194 / 0.196 inches, an angle of 55 degrees, and a width of 0.343 / 0.345 inches. These blanks provide superior cutting performance and durability, making them ideal for grooving applications. Designed for precision and reliability, these blanks ensure consistent results in machining operations. Available in customizable grades upon request to meet varied industrial needs.

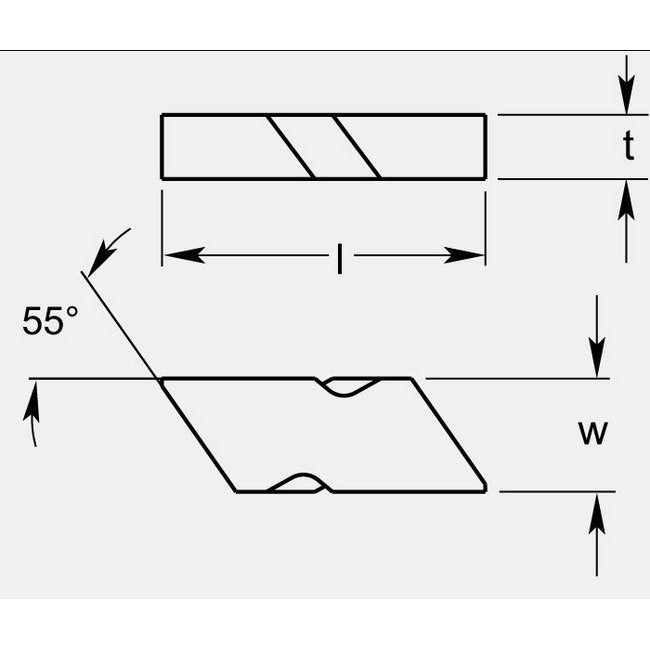

Product Specifications
Dimensional Specification Angle A
55 º
Dimensional Specification L
0.983 in
Dimensional Specification Thickness T
0.194 / 0.196 in
Dimensional Specification Width W
0.343 / 0.345 in
Grade Availability Grade Availability
Available on Request
