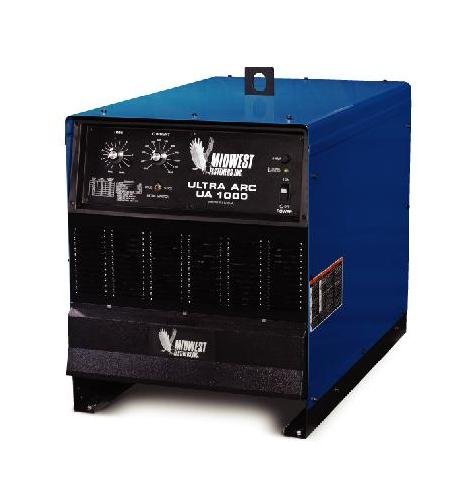

UA 1000 Arc Stud Welding Machine
UA 1000 Arc Stud Welding Machine
SKU:STU-c4e673
Powerful UA 1000 Arc Stud Welding Machine with versatile welding range and precise control for aluminum, mild steel, and stainless steel.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
UA 1000 Arc Stud Welding Machine
$4,999.99
Quantity: 1
Claim Your Seller Account
UA 1000 Arc Stud Welding Machine
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UA 1000 Arc Stud Welding Machine offers a comprehensive stud welding solution for a range of materials including aluminum, mild steel, and stainless steel. With a welding range from 10 gauge to 5/8", this machine features a three-phase transformer, rectifier, variable voltage input options of 230/460/575, continuous current control up to 1200A, and a solid-state circuitry for precise welds. It includes a Standard Duty Weld Gun, Ground Cable, and Extension Cable Set, making it a complete system for various welding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Key Features Maximum Weld Diameter
M16
Key Features Maximum Weld Diameter Decimal
0.625 in
Key Features Maximum Weld Diameter Fraction
5/8 in
Key Features Minimum Weld Length
20 mm
Key Features Weldable Material
Aluminum | Mild Steel | Stainless
Key Features Weld System
UA 1000
Manual Welding Properties Output Current At 38 V 60
450 A
Manual Welding Properties Welding Range
20 to 590 A
Secondary Features Backside Marking On Thinner Material
Acceptable
Secondary Features Minimum Material Thickness
0.109 in (12 gauge) | 3 mm (12 gauge)
Secondary Features Weld Penetration
Penetration Weld, Structural Strength

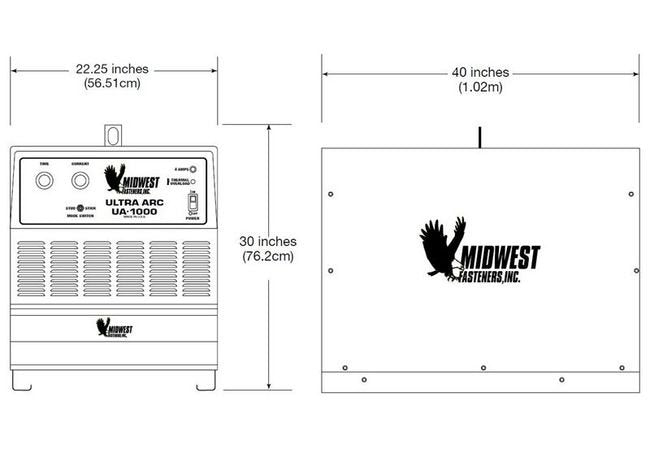

Specifications Depth
35-3/4 in
Specifications Height
30 in

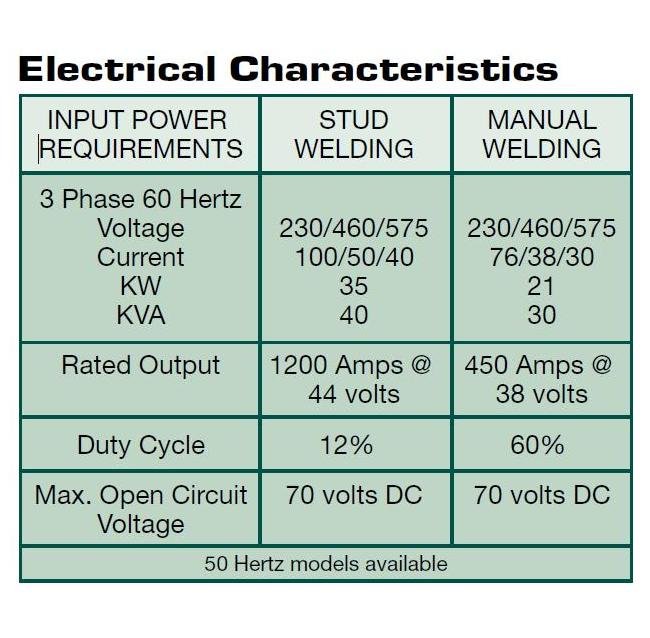

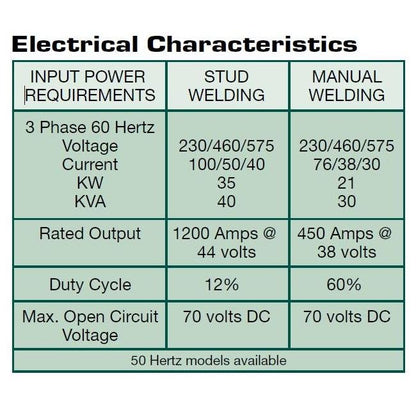

Specifications Incoming Power Voltage
230 V | 460 V | 575 V
Specifications Minimum Weld Length Decimal
0.750 in
Specifications Minimum Weld Length Fraction
3/4 in
Specifications Stud To Base Weld Area
Air/Fluid "Tight"
Specifications Weight
500 lb
Specifications Width
22-1/4 in
Stud Welding Properties Duty Cycle
1/2" (M14) 14/min. | 3/8" (M10) and less â unlimited | 5/8" (M16) 10/min.
Stud Welding Properties Standard Features
1 stud welding gun with legs and foot piece | 25 ft. (7.62m) of 1/0 ground cable with "C" clamp | 50 ft. (15.24m) of 1/0 combination cable
Stud Welding Properties Welding Range
10 gauge (3mm) through 5/8" (M16) diameter studs
