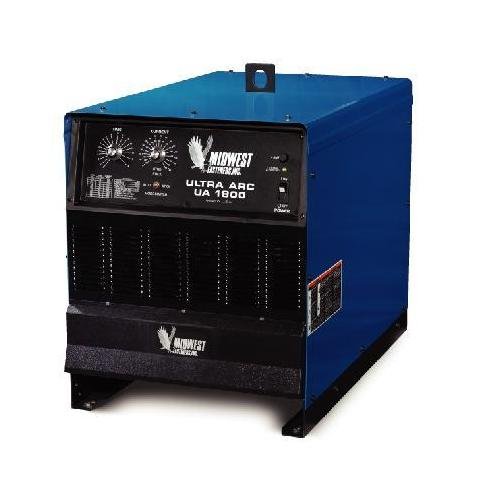

UA 1800 Arc Stud Welding System
UA 1800 Arc Stud Welding System
SKU:STU-73bd10
Powerful and precise UA 1800 Arc Stud Welding System for industrial applications. Weld aluminum, mild steel, and stainless steel with ease.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
UA 1800 Arc Stud Welding System
$5,499.99
Quantity: 1
Claim Your Seller Account
UA 1800 Arc Stud Welding System
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

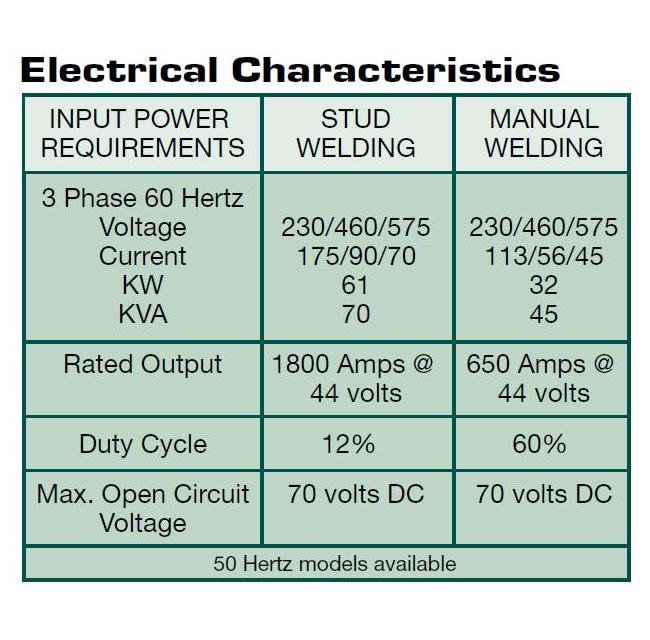

The UA 1800 Arc Stud Welding System is a robust and versatile machine designed for precise stud welding applications in industrial settings. With a weldable material range including aluminum, mild steel, and stainless steel, this system offers a maximum weld diameter of up to M22 (7/8 inches) and a minimum weld length of 20mm (3/4 inches). Features like a three-phase transformer, rectifier, variable voltage input (230/460/575V), and continuous current control up to 1800Amps ensure efficient and reliable welding performance. The complete system includes a heavy-duty weld gun, ground cable, and extension cable set, making it a comprehensive solution for your welding needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Key Features Maximum Weld Diameter
M22
Key Features Maximum Weld Diameter Decimal
0.875 in
Key Features Maximum Weld Diameter Fraction
7/8 in
Key Features Minimum Weld Length
20 mm
Key Features Minimum Weld Length Decimal
0.750 in
Key Features Minimum Weld Length Fraction
3/4 in
Key Features Weldable Material
Aluminum | Mild Steel | Stainless
Key Features Weld System
UA 1800
Secondary Features Backside Marking On Thinner Material
Acceptable
Secondary Features Minimum Material Thickness
0.109 in (12 gauge) | 3 mm (12 gauge)
Secondary Features Weld Penetration
Penetration Weld, Structural Strength

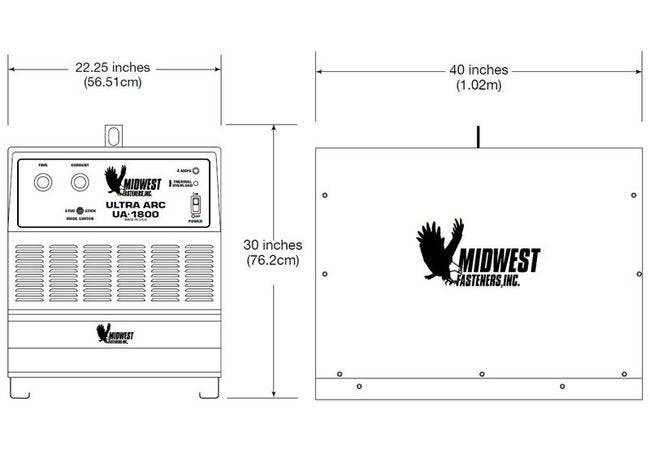

Specifications Depth
40 in
Specifications Height
30 in
Specifications Incoming Power Voltage
230 V | 460 V | 575 V
Specifications Stud To Base Weld Area
Air/Fluid "Tight"
Specifications Weight
650 lb
Specifications Width
22-1/4 in
