UA 500 Arc Stud Welding Machine - Heavy Duty Weld System
UA 500 Arc Stud Welding Machine - Heavy Duty Weld System
SKU:STU-e0fc85
Powerful UA 500 Arc Stud Welding Machine for precise and efficient stud welding. Single-phase transformer, continuous current control, and solid-state circuitry.
Regular price
$3,899.99
Regular price
Sale price
$3,899.99
Unit price
per
Initiate Order
UA 500 Arc Stud Welding Machine - Heavy Duty Weld System
$3,899.99
Quantity: 1
Claim Your Seller Account
UA 500 Arc Stud Welding Machine - Heavy Duty Weld System
$3,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

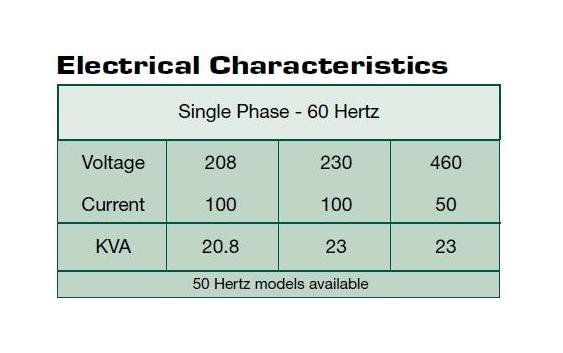

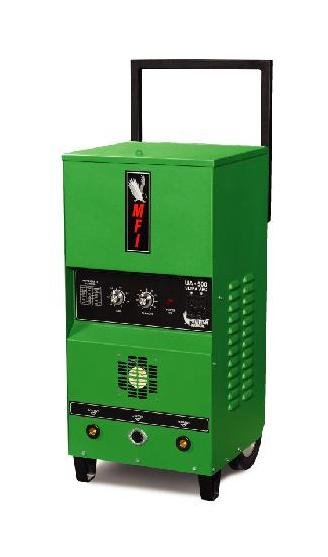

The UA 500 Arc Stud Welding Machine is a robust solution for stud welding, accommodating studs ranging from 10 gauge (3mm) to ½" (M14) in diameter. This weld system features a single-phase transformer with rectifier variable voltage input options of 208/230/460V, offering continuous current control up to 900Amps and time control ranging from .05 to 0.7 seconds. Built with solid-state circuitry and a wheel-mounted, heavy-gauge steel case for durability and portability, it comes complete with a Standard Duty Weld Gun, Ground Cable, and Extension Cable Set. Backed by a sturdy construction and versatile weld settings, this machine ensures efficient and precise welds on aluminum, mild steel, and stainless steel materials.
Product Specifications
Key Features Maximum Weld Diameter
M12
Key Features Maximum Weld Diameter Decimal
0.500 in
Key Features Maximum Weld Diameter Fraction
1/2 in
Key Features Minimum Weld Length
20 mm
Key Features Minimum Weld Length Decimal
0.750 in
Key Features Minimum Weld Length Fraction
3/4 in
Key Features Weldable Material
Aluminum | Mild Steel | Stainless
Key Features Weld System
UA 500
Secondary Features Backside Marking On Thinner Material
Acceptable
Secondary Features Minimum Material Thickness
0.109 in (12 gauge) | 3 mm (12 gauge)
Secondary Features Weld Penetration
Penetration Weld, Structural Strength

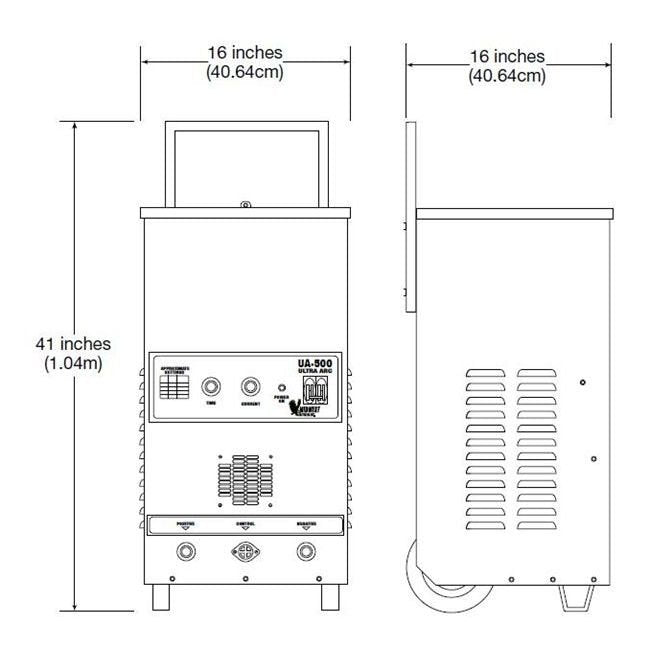

Specifications Depth
16 in
Specifications Height
41 in
Specifications Incoming Power Voltage
230 V | 460 V | 575 V
Specifications Stud To Base Weld Area
Air/Fluid "Tight"
Specifications Weight
150 lb
Specifications Width
16 in
