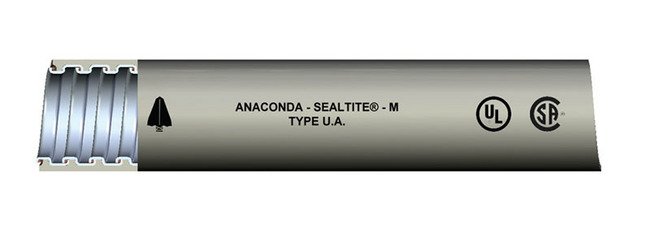

UA HD Liquid Tight Flexible Metal Conduit (LFMC)

Name: UA HD Liquid Tight Flexible Metal Conduit (LFMC)
Brand: Anamet Electrical, Inc.
SKU: LIQ-92bb07
Price: 399.99 USD
Availability: OutOfStock

SKU:LIQ-92bb07

Reliable UA HD Liquid Tight, Flexible Metal Conduit (LFMC) for extreme environments. UV-resistant PVC jacket. NEC compliant. UL & CSA certified.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

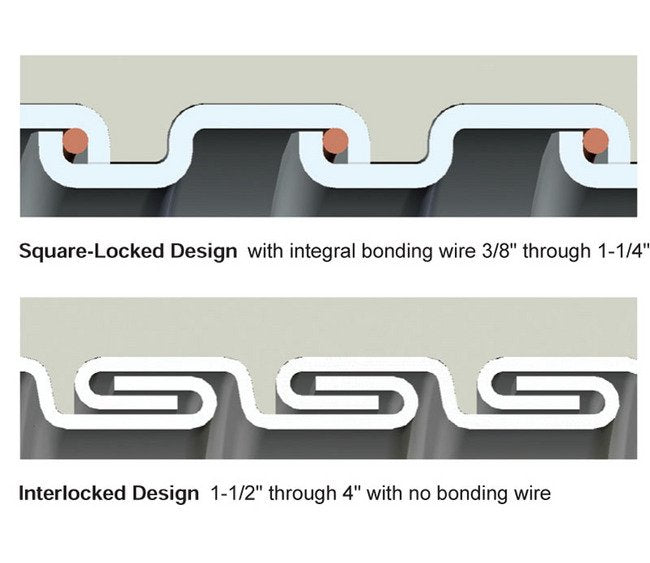

The UA HD Liquid Tight Flexible Metal Conduit (LFMC) is a rugged solution crafted from continuously interlocked hot-dipped zinc galvanized steel core for unparalleled crush and corrosion resistance. Its UV-resistant PVC jacket withstands extreme temperatures from -40°F to +176°F, making it ideal for outdoor applications. This conduit, available in Trade sizes ranging from 3/8 to 4 inches, meets stringent NEC Articles 300.22 (D), 250.102, 250.118(5), and more, ensuring suitability for Hazardous Locations per NEC. Certified by UL and CSA, this LFMC is designed for durability and compliance with industry standards.

Product Specifications

Specifications Approx Inside Bend Radius

3.5 in | 88.9 mm

Specifications Approx Weight Per 100 Ft

30 lbs | 13.6 kg

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Inside Diameter

0.622 to 0.642 in | 15.799 to 16.307 mm

Specifications Length

500 ft | 152.4 m

Specifications Outside Diameter

0.822 to 0.840 in | 20.879 to 21.336 mm

Specifications Packaging

Small Reels

UA HD Liquid Tight Flexible Metal Conduit (LFMC)
