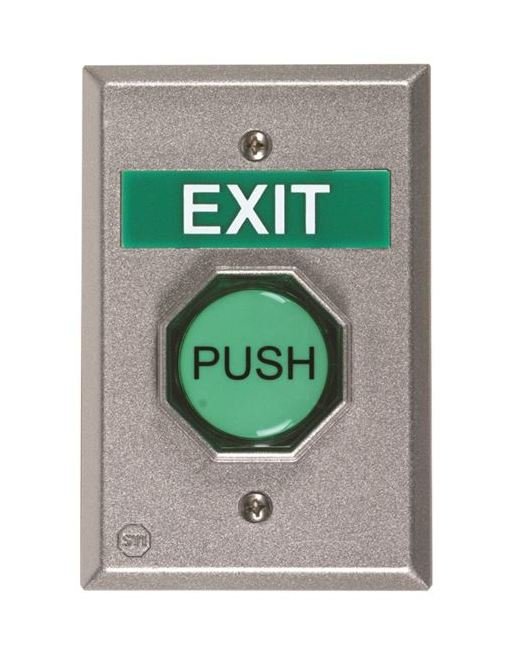

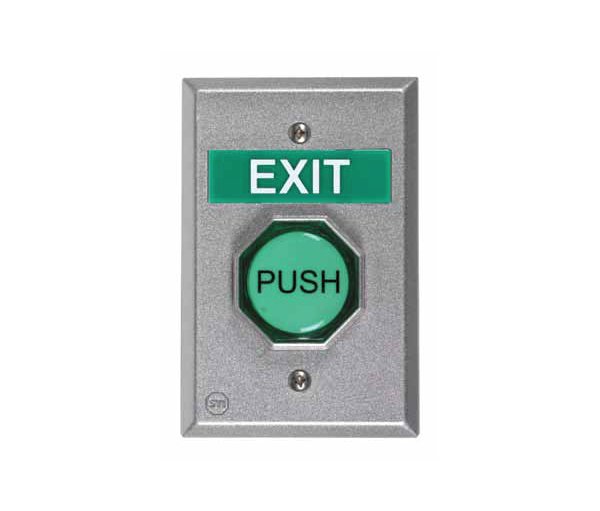

This momentary button helps eliminate having to stock dozens of push buttons, and wasting precious time and money tracking down just the right button for a customer. It offers many options to provide just what a customer wants in one convenient package. Button is ready to be assembled out of box and is easily installed within minutes on site. Universal Button offers over 300 different combinations for the price of a standard one configuration button. The faceplate is constructed of cast aluminum metal, allowing it to take tough knocks in stride, and is slightly oversized to cover old plate installation marks. Button package includes: faceplate, three illuminated push buttons, five changeable button messages and ten changeable illuminated activation messages.
Product Specifications
Accessories
LT-1 - Latching/Timer ModuleUB-2LENS - 2" LensUB-1CL-COLOR - Custom Label applied to blank, changeable message plates (blue, green, white or yellow)KIT-UB-1C - Contact BlockKIT-71100A-COLOR - Color Match Back Box Kit (red, blue, green, white or yellow)E10147 - 24 Volt LED, White (standard)E10145 - 24 Volt LED, RedE10141 - 24 Volt LED, BlueE10143 - 24 Volt LED, GreenE10144 - 12 Volt LED, RedE10140 - 12 Volt LED, BlueE10142 - 12 Volt LED, GreenSTI-6518 - Bopper Stopper® Protective Cover
Approvals And Warranty Testing
It has been tested and approved or listed by: UL/cUL File S7255UL 2017UL 294 (models ending with LTUL)CSA C22.2 No. 205ADA for operationUL Listed to U.S. and Canadian safety standards.LTUL models Listed for access control.
Approvals And Warranty Warranty
1 y

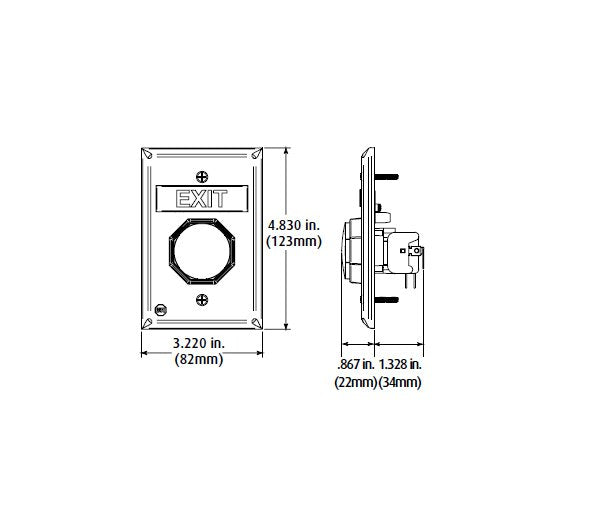

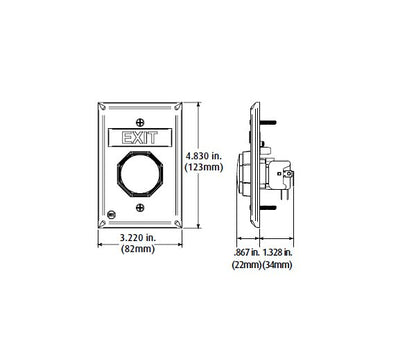

Dimensions Overall Depth
2.195 in | 56 mm
Dimensions Overall Height
4.83 in | 123 mm
Dimensions Overall Width
3.22 in | 82 mm
How It Works
The installer simply has to choose which lens cover, button insert and interchangeable message plate works best for the customers need, and easily snap them in place. This allows the button to be mounted in a matter of minutes instead of waiting weeks for a specific button to be ordered and delivered.
Key Features Construction
Faceplate constructed of cast aluminum.
Key Features Electronics
Illuminated 12/24 Volt LED button and illuminated message light kit.Two sets of independent Form "C" contacts.Contacts rated 10 A at 125/250 V AC, 1/2 HP, 6 A at 30 V DC.
Key Features General Information
Offers over 300 different combinations.Momentary button offers many options to provide just what a customer wants in one convenient package.100,000 operations.
Key Features Installation
Temperature: -40º to 185 ºF (-40º to 85 ºC).Mounts to standard electrical handi box.Single gang plate slightly oversized to cover old plate installation marks.
Key Features Options

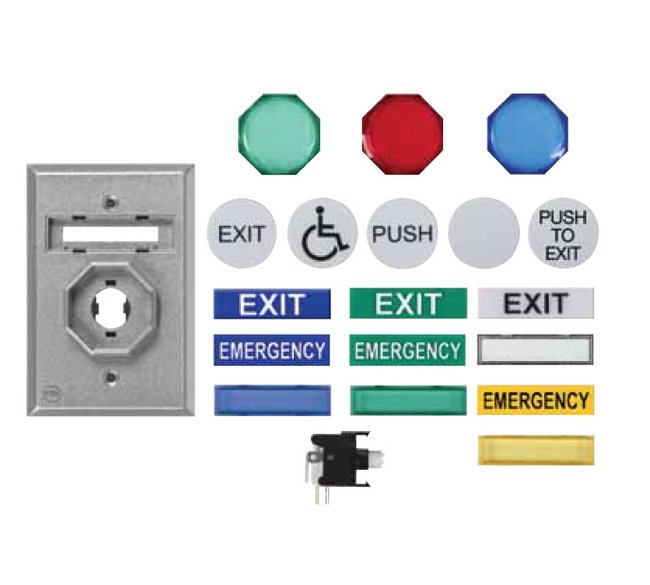

Five inserts for the button included - EXIT, PUSH, PUSH TO EXIT, handicap symbol and blank.Three different lens covers included - red, green and blue.Ten color coated message inserts in green, blue, yellow and white.Plate messages inscribed with EXIT, EMERGENCY and translucent blanks (allowing for custom labels).
Specifications Model Type
Universal Button
Specifications Operating Temperature
-40 to 85 ºC | -40 to 185 ºF
