UCAT-3 12 in Specialty Unwinder
UCAT-3 12 in Specialty Unwinder
SKU:UCA-d25759
Efficiently manage labels with the UCAT-3 12 in Specialty Unwinder.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
UCAT-3 12 in Specialty Unwinder
$499.99
Quantity: 1
Claim Your Seller Account
UCAT-3 12 in Specialty Unwinder
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

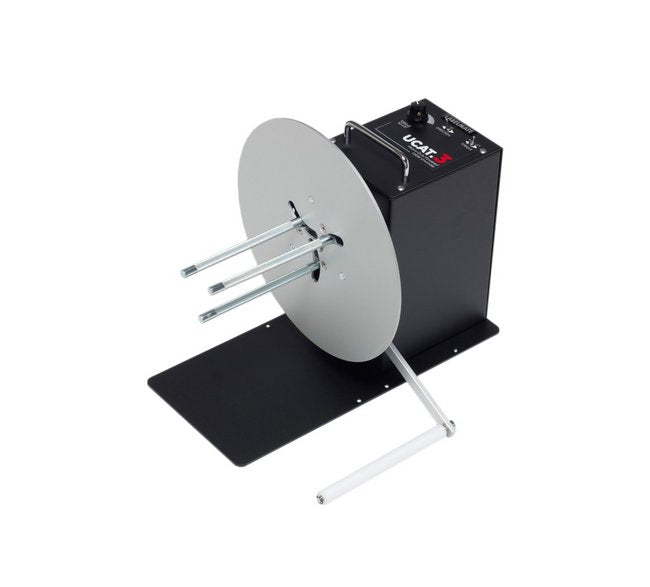

The UCAT-3 12 inch Specialty Unwinder revolutionizes label management for both consumer and institutional users. With a maximum roll diameter of 12 inches, 1-inch core diameter, and the ability to handle rolls up to 20 lbs, it ensures efficient label feeding to printers, reducing per unit costs. Save time with less frequent roll changes, optimize printer performance, and utilize larger supply rolls effortlessly.
Product Specifications
Available Options Available Options
Flange, CAT, Out-1" (Outer Guide Flange)HTO-CAT (Hi-Torque Option)LTO-CAT (Low-Torque Option)Footswitch
Technical Specs Alternating Current Ac Input Voltage
120 to 22 V
Technical Specs Alternating Current Ac Output Voltage
12 V
Technical Specs Core Diameter
1 in | 25 mm
Technical Specs Depth
17 in | 432 mm
Technical Specs Height
14 in | 356 mm
Technical Specs Maximum Media Width
6 in | 152 mm
Technical Specs Maximum Roll Diameter
12 in | 305 mm
Technical Specs Maximum Roll Weight
20 lb | 9 kg
Technical Specs Maximum Speed
120 in/s | 3048 mm/s | 388 rpm
Technical Specs Maximum Torque
183 in·oz
Technical Specs Minimum Speed
1 in/s | 25 mm/s
Technical Specs Note For Maximum Torque
HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19 VDC 80 W.LTO-CAT decreases Torque Range to 172 - 35 in-oz.
Technical Specs Output Power
40 W
Technical Specs Warranty
5 year limited warranty on Unwinder1 year limited warranty on Power Adaptor
Technical Specs Weight
26 lb | 11.8 kg
Technical Specs Width
17 in | 432 mm
