UCAT-3 Chuck Unwinders with Advanced Features for Label Management
UCAT-3 Chuck Unwinders with Advanced Features for Label Management
SKU:UCA-1bdf77
Optimize label printing with UCAT-3 Chuck Unwinders for cost-effective efficiency.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
UCAT-3 Chuck Unwinders with Advanced Features for Label Management
$899.99
Quantity: 1
Claim Your Seller Account
UCAT-3 Chuck Unwinders with Advanced Features for Label Management
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

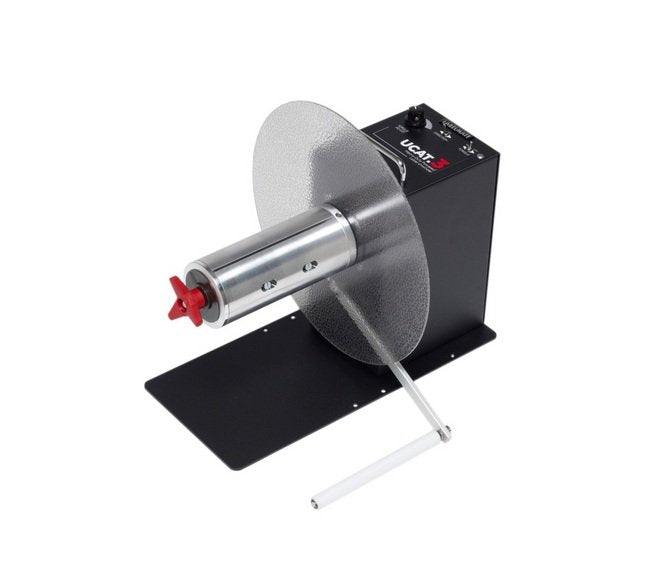

Enhance your label printing efficiency with the UCAT-3 Chuck Unwinders. Designed to manage supply rolls of labels effortlessly, these powered unwinders alleviate stress on your printer by feeding labels smoothly. Increase productivity with the ability to use larger supply rolls, reducing per-unit label costs and minimizing roll changes. Enjoy the convenience of extended run times, saving time and optimizing your workflow.
Product Specifications
Available Options Available Options
FLANGE, OUT, QC-12 (Optional Outer Guide Flange)LTO-CAT (Low-Torque Option)ADAPT-326 (6â Core Adaptor)Footswitch
Technical Specs Alternating Current Ac Input Voltage
120 to 220 V
Technical Specs Alternating Current Ac Output Voltage
12 V
Technical Specs Core Diameter
3 in | 76 mm
Technical Specs Depth
17 in | 432 mm
Technical Specs Height
14 in | 356 mm
Technical Specs Maximum Media Width
6 to 10 in | 152 to 254 mm
Technical Specs Maximum Roll Diameter
12 in | 305 mm
Technical Specs Maximum Roll Weight
20 lb | 9 kg
Technical Specs Maximum Speed
120 in/s | 3048 mm/s | 388 rpm
Technical Specs Maximum Torque
183 in·oz
Technical Specs Minimum Speed
1 in/s | 25 mm/s
Technical Specs Note For Maximum Media Width
Depends on whether you order the CHUCK, CHUCK-220, or CHUCK-10 model
Technical Specs Note For Maximum Speed
HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19VDC 80W.
Technical Specs Note For Maximum Torque
LTO-CAT decreases Torque Range to 172 - 35 in-oz.HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19VDC 80W.
Technical Specs Note For Power Specifications
HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19VDC 80W.
Technical Specs Note For Weight
Depends on whether you order the CHUCK, CHUCK-220, or CHUCK-10 model
Technical Specs Number Of Flanges
1
Technical Specs Output Power
40 W
Technical Specs Warranty
1 year limited warranty on Power Adapter | 5 year limited warranty on Unwinder
Technical Specs Weight
29 to 31 lb | 13 to 14 kg
Technical Specs Width
17 in | 432 mm
