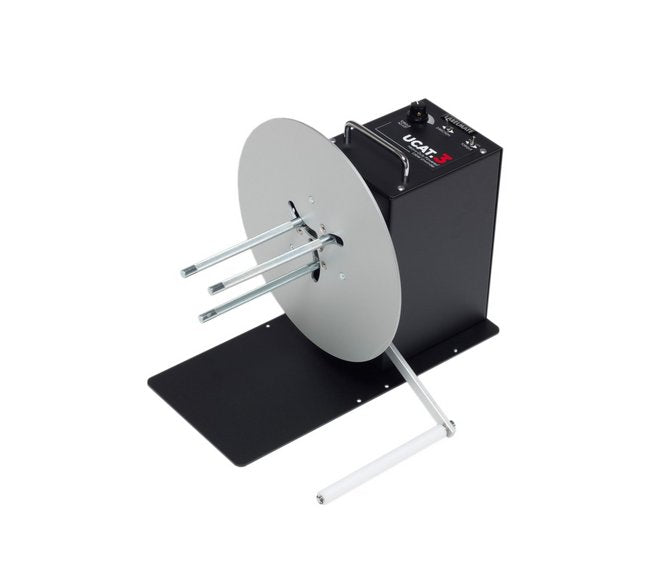

UCAT-3 Specialty Unwinder with 11" Max Roll Diameter
UCAT-3 Specialty Unwinder with 11" Max Roll Diameter
SKU:UCA-b61fe4
Efficiently manage labels with the UCAT-3 Unwinder, supporting 11" max roll diameter. Reduce costs and save time!
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
UCAT-3 Specialty Unwinder with 11" Max Roll Diameter
$799.99
Quantity: 1
Claim Your Seller Account
UCAT-3 Specialty Unwinder with 11" Max Roll Diameter
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance label management efficiency with the UCAT-3 Specialty Unwinder featuring a maximum roll diameter of 11 inches. This powered unwinder reduces printer stress, supports larger supply rolls, and cuts down label costs per unit. Save time and increase convenience by minimizing supply roll refresh frequency with this high-speed, versatile solution.
Product Specifications
Available Options Available Options
APG-CAT (Outer Roll Guide)HTO-CAT (Hi-Torque Option)LTO-CAT (Low-Torque Option)Footswitch
Technical Specs Alternating Current Ac Input Voltage
120 to 22 V
Technical Specs Alternating Current Ac Output Voltage
12 V
Technical Specs Core Diameter
1 to 4 in | 25 to 102 mm
Technical Specs Depth
17 in | 432 mm
Technical Specs Height
14 in | 356 mm
Technical Specs Maximum Media Width
6 in | 152 mm
Technical Specs Maximum Roll Diameter
11 in | 279 mm
Technical Specs Maximum Roll Weight
17 lb | 8 kg
Technical Specs Maximum Speed
115 in/s | 2921 mm/s | 388 rpm
Technical Specs Maximum Torque
183 in·oz
Technical Specs Minimum Speed
1 in/s | 25 mm/s
Technical Specs Note For Maximum Torque
HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19 VDC 80 W.LTO-CAT decreases Torque Range to 172 - 35 in-oz.
Technical Specs Output Power
40 W
Technical Specs Warranty
5 year limited warranty on Unwinder1 year limited warranty on Power Adaptor
Technical Specs Weight
28 lb | 12.7 kg
Technical Specs Width
17 in | 432 mm
