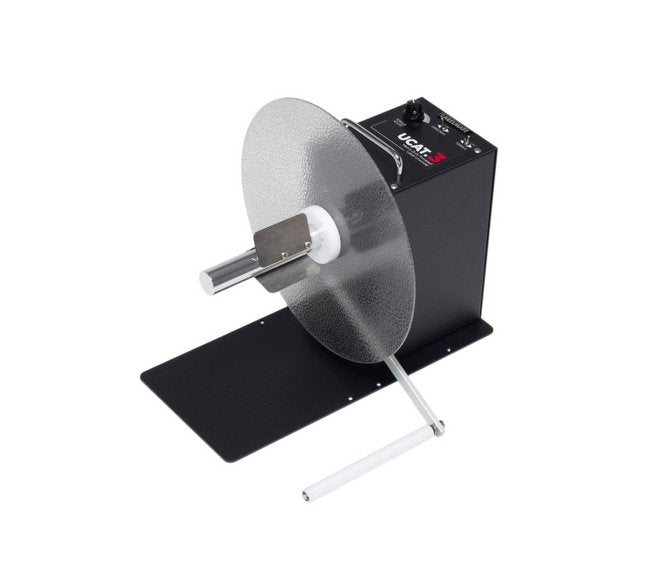

UCAT-3 Standard Unwinder 6-inch Media Width
UCAT-3 Standard Unwinder 6-inch Media Width
SKU:UCA-775833
Enhance productivity and reduce costs with the UCAT-3 Standard Unwinder for 6-inch media widths. Ideal for efficient label roll management.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
UCAT-3 Standard Unwinder 6-inch Media Width
$599.99
Quantity: 1
Claim Your Seller Account
UCAT-3 Standard Unwinder 6-inch Media Width
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UCAT-3 Standard Unwinder is a powered solution designed to efficiently manage label supply rolls, reducing printer stress and lowering per unit label costs. With a maximum media width of 6 inches and accommodating larger supply rolls, this unwinder saves time and enhances convenience by reducing the frequency of roll refresh. Experience increased productivity with precise label feeding and optimal performance for your labeling needs.
Product Specifications
Available Options Available Options
FLANGE, CAT, OUT (Optional Outer Guide Flange)HTO-CAT (High-Torque Option)LTO-CAT (Low-Torque Option)Footswitch
Technical Specs Alternating Current Ac Input Voltage
120 to 220 V
Technical Specs Alternating Current Ac Output Voltage
12 V
Technical Specs Core Diameter
3 in | 76 mm
Technical Specs Depth
17 in | 432 mm
Technical Specs Height
14 in | 356 mm
Technical Specs Maximum Media Width
6 in | 152 mm
Technical Specs Maximum Roll Diameter
12 in | 305 mm
Technical Specs Maximum Roll Weight
17 lb | 432 kg
Technical Specs Maximum Speed
120 in/s | 3048 mm/s | 388 rpm
Technical Specs Maximum Torque
183 in·oz
Technical Specs Minimum Speed
1 in/s | 25 mm/s
Technical Specs Note For Maximum Speed
HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19VDC 80W.
Technical Specs Note For Maximum Torque
HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19VDC 80W.LTO-CAT decreases Torque Range to 172 - 35 in-oz.
Technical Specs Note For Power Specifications
HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19VDC 80W.
Technical Specs Number Of Flanges
1
Technical Specs Output Power
40 W
Technical Specs Warranty
1 year limited warranty on Power Adapter | 5 year limited warranty on Unwinder
Technical Specs Weight
26 lb | 11.8 kg
Technical Specs Width
17 in | 432 mm
