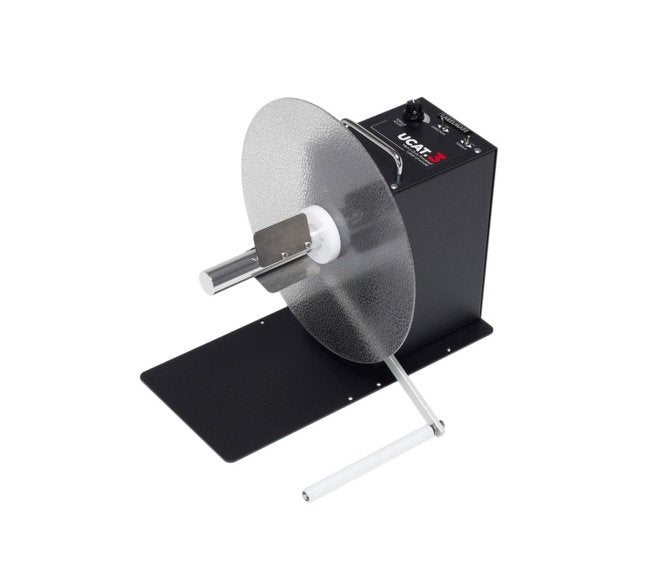

UCAT-3-Standard Unwinder for 10 Inch Media Width
UCAT-3-Standard Unwinder for 10 Inch Media Width
SKU:UCA-13cb14
Upgrade label management efficiency with the UCAT-3 Unwinder for 10-inch media. Reduce costs and enhance productivity.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
UCAT-3-Standard Unwinder for 10 Inch Media Width
$899.99
Quantity: 1
Claim Your Seller Account
UCAT-3-Standard Unwinder for 10 Inch Media Width
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UCAT-3-Standard Unwinder is a reliable solution for managing supply rolls of labels efficiently. With a maximum media width of 10 inches, this powered unwinder reduces printer stress, supports larger supply rolls to lower per unit label costs, and decreases downtime by minimizing roll refresh frequency. Enhance productivity, save time, and optimize label management seamlessly with this unwinder.
Product Specifications
Available Options Available Options
FLANGE, CAT, OUT (Optional Outer Guide Flange)HTO-CAT (High-Torque Option)LTO-CAT (Low-Torque Option)Footswitch
Technical Specs Alternating Current Ac Input Voltage
120 to 220 V
Technical Specs Alternating Current Ac Output Voltage
12 V
Technical Specs Core Diameter
3 in | 76 mm
Technical Specs Depth
19 in | 482 mm
Technical Specs Height
14 in | 356 mm
Technical Specs Maximum Media Width
10 in | 254 mm
Technical Specs Maximum Roll Diameter
12 in | 305 mm
Technical Specs Maximum Roll Weight
17 lb | 432 kg
Technical Specs Maximum Speed
120 in/s | 3048 mm/s | 388 rpm
Technical Specs Maximum Torque
183 in·oz
Technical Specs Minimum Speed
1 in/s | 25 mm/s
Technical Specs Note For Maximum Speed
HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19VDC 80W.
Technical Specs Note For Maximum Torque
HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19VDC 80W.LTO-CAT decreases Torque Range to 172 - 35 in-oz.
Technical Specs Note For Power Specifications
HTO-CAT increases Max Torque to 228 in-oz, Max RPM to 485, 304 ips (7,721-mm), and Power Out to 19VDC 80W.
Technical Specs Number Of Flanges
1
Technical Specs Output Power
40 W
Technical Specs Warranty
1 year limited warranty on Power Adapter | 5 year limited warranty on Unwinder
Technical Specs Weight
28 lb | 12.7 kg
Technical Specs Width
17 in | 432 mm
