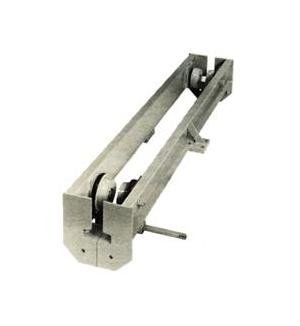

UCS Competitor Series Motor Driven End Truck Kits
UCS Competitor Series Motor Driven End Truck Kits
SKU:REL-548349
Enhance overhead cranes with precision motor-driven end truck kits for smooth, reliable operation. Capacity: 10 tons.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
UCS Competitor Series Motor Driven End Truck Kits
$3,999.99
Quantity: 1
Claim Your Seller Account
UCS Competitor Series Motor Driven End Truck Kits
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your overhead cranes with the UCS Competitor Series Motor Driven End Truck Kits. These kits feature single and dual motor designs with precision oil bath lubricated gearing and mechanical braking, meeting all OSHA requirements. Fabricated from steel channel shapes and alloy steel wheels with heavy-duty bearings, these kits ensure smooth and reliable crane operation. With a capacity of 10 tons and optional equipment for customization, these kits are ideal for demanding service requirements in institutional and industrial settings.
Product Specifications
Kit Contents 0
Tru-Tred Alloy Steel Wheels Motor Driven Models Heavy Duty sealed tapered tapered roller bearings Precision Machine Cut Steel Gears Large Diameter Drive Pinions
Specifications Capacity
10 Tons
Specifications Crane Wheel Diameter
6 1/2 inches
Specifications Max Runway Rail
S20 x 66.0
Specifications Max Wheel Load Per Pair
14000 lbs.
Specifications Min Runway Rail
S12 x 31.8
Specifications Model
Model UCS Competitor Series
Specifications Net Weight Per Pair
950 lbs.
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Specifications Wheel Base
6'-0"
Standard Features 0
Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping. Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing.End Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway system.Tru-Tred Wheels : Precision machined from alloy steel to meet the most demanding service requirements.Wheel Bearings : Heavy duty long life rated lubricated and sealed Timken tapered roller bearings designed to take the unavoidable shocks of crane duty.Side Rollers : Heavy-duty cam follower bearings provide smooth non-skewing crane operation.
