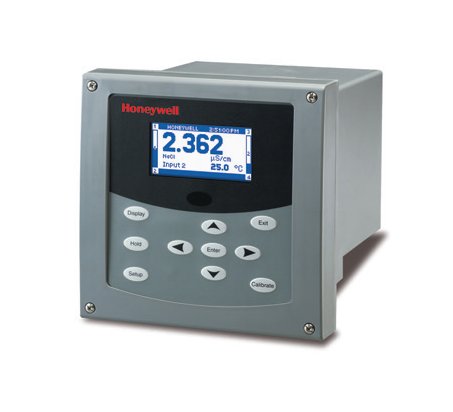

The UDA2182 Series is a versatile, dual or single input analyzer that measures pH, ORP, contacting conductivity and dissolved oxygen. The “mix-and-match” input design offers the user flexibility for a wide range of applications. Its common form, fit and function to older Honeywell analyzers make it a quick and easy retrofit into existing panels and installations.
Product Specifications
Conductivity Input
The conductivity input will accept signals from Honeywell’s standard selection of contacting conductivity cells. The conductivity unit also has:Temperature Compensation CurvesCalculation of % Rejection/Passage and Difference of Two CellsConversions to ppm, ppb or ppt Total Dissolved Solids (TDS)CO2 Concentration AlgorithmpH from Differential Conductivity
Dissolved Oxygen Input
The dissolved oxygen input is from Honeywell’s unique equilibrium probe. It has these additional features:ppm or ppb MeasurementAutomatic or Manual CalibrationAmbient Temperature and Atmospheric Pressure Compensation
Features
Versatile Multiple Input AnalyzerMix and Match Process MeasurementsEntire Status at a Glance-Graphic LED DisplayFast and Easy Commissioning-Even Wireless ConfigurationRemote Monitoring Using Web PagesSingle or Dual Input for pH, ORP, Contacting Conductivity or Dissolved OxygenDual Input in any Measurement CombinationPID Control OptionUp to 3 Analog OutputsUp to 4 Alarm RelaysBacklit Graphical LED DisplayType 4 CaseInfrared PC and Pocket PC ConfigurationFM/CSA Class 1, Div 2 ApprovalEvent History LogReal Time ClockAuto Clean/Auto Calibration FunctionsEthernet/Modbus CommunicationsEastern European Languages
Potential Of Hydrogen Ph Input
The pH input will accept a wide variety of sensors–non-glass Durafet®, HB high performance pH series and traditional glass Meredian® electrodes, ORP combination electrodes and the HPW700 high purity system. In addition to the basic unit the pH input has:Auto Buffer CalibrationHigh Purity Water Solution Compensation0.2 sec Update Rate for Fast Responding Durafet pH Electrodes
Technical Specs Alternating Current Ac Operating Voltage
90 to 264 V
Technical Specs Analog Output Current
4 to 20 mA
Technical Specs Case
Plastic Enclosure Made of GE Valox® 357 CSA Type 4X (NEMA 4X)
Technical Specs Control Capabilitiesadvanced Features
PID Control, Ethernet/Modbus Communications, Pocket PC and Infrared Configuration, Auto-buffer Calibration, High Purity Water Solution Compensation, 0.2 sec Update Rate, E. European Languages
Technical Specs Display
Liquid Crystal Display (LCD) Dot Matrix
Technical Specs Display Resolution
128 x 64 dpi
Technical Specs Frequency
47 to 63 Hz
Technical Specs Hazardous Approvals
European Conformity (CE) | Factory Mutual (FM) Class 1, Division 2 | Underwriter Laboratories (UL)/Canadian Standards Association (CSA) General Purpose
Technical Specs Measurement
pH/ORP
Technical Specs Mountings
Panel | Pipe | Wall
Technical Specs Number Of Analog Outputs
0 to 3
Technical Specs Operating Temperature
0 to 60 ºC | 32 to 140 ºF
Technical Specs Reading Display Accuracy
0.05 %
Technical Specs Relays
0 to 4
