UL 3239 Orange 22 AWG Wire, 0.03in Conductor Diameter
UL 3239 Orange 22 AWG Wire, 0.03in Conductor Diameter
SKU:WIR-cbeb50
High-flex Orange 22AWG Wire with 5-60kVDC rating, ozone/corona resistance & VW-1 flame test compliant
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
UL 3239 Orange 22 AWG Wire, 0.03in Conductor Diameter
$14.99
Quantity: 1
Claim Your Seller Account
UL 3239 Orange 22 AWG Wire, 0.03in Conductor Diameter
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

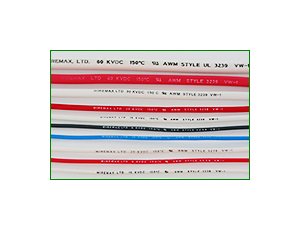

The UL 3239 Wire in vibrant Orange color boasts a conductor diameter of 0.03 inches, ideal for applications requiring high flexibility and resistance to ozone and corona. With a voltage rating from 5kVDC to 60kVDC, this wire is designed for reliability in various settings such as heaters, furnaces, motors, and more. Meeting VW-1 flame test standards, this wire offers a safe and durable solution for your electrical needs.
Product Specifications
Applications 0
HeatersFurnacesOvensDryersMotorsLighting FixturesSignsPower SuppliesCRT DisplaysCorona Treating EquipmentMisc. Electronic Equipment
Note 0
Standard Construction for UL 3239. Different conductor constructions and plating available for use up to 200ºC.
Specifications Color
Orange
Specifications Conductorstranding Construction
7/30
Specifications Conductor Diameter
0.030 in
Specifications Conductor Size
22
Specifications Direct Current Dc Voltage
20 kV
Specifications Manufacturer
Wiremax
Specifications Nominal Diameter
0.132 in
Specifications Temperature
150 ºC
Specifications Ul Awm File Number
E174208
