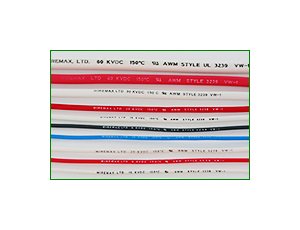

UL 3239 Red Wire, 0.056in Conductor Diameter
UL 3239 Red Wire, 0.056in Conductor Diameter
SKU:WIR-cd5834
High voltage UL 3239 red wire with superior flexibility, ozone resistance, and VW-1 flame test compliance for various electronic applications.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
UL 3239 Red Wire, 0.056in Conductor Diameter
$15.99
Quantity: 1
Claim Your Seller Account
UL 3239 Red Wire, 0.056in Conductor Diameter
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UL 3239 Wire in red color features a high voltage range of 5 KVDC thru 60 KVDCHigh, flexibility with 24 AWG thru 10 AWG conductors, ozone and corona resistance, and complies with the VW-1 flame test. Suitable for applications in heaters, furnaces, ovens, dryers, motors, lighting fixtures, signs, power supplies, CRT displays, corona treating equipment, and miscellaneous electronic equipment. With a conductor diameter of 0.056 inches, UL-AWM File Number E174208, and a temperature rating of 150°C. Standard construction for UL 3239 with the option for different conductor constructions and platings for use up to 200°C.
Product Specifications
Applications 0
HeatersFurnacesOvensDryersMotorsLighting FixturesSignsPower SuppliesCRT DisplaysCorona Treating EquipmentMisc. Electronic Equipment
Note 0
Standard Construction for UL 3239. Different conductor constructions and plating available for use up to 200ºC.
Specifications Color
Red
Specifications Conductorstranding Construction
26/30
Specifications Conductor Diameter
0.056 in
Specifications Conductor Size
16
Specifications Direct Current Dc Voltage
25 kV
Specifications Manufacturer
Wiremax
Specifications Nominal Diameter
0.182 in
Specifications Temperature
150 ºC
Specifications Ul Awm File Number
E174208
