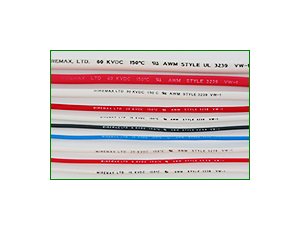

UL 3239 Yellow Wire 0.056in Conductor Diameter
UL 3239 Yellow Wire 0.056in Conductor Diameter
SKU:WIR-25502d
High voltage UL 3239 Yellow Wire with exceptional flexibility, ozone/corona resistance & VW-1 flame test compliance. Suitable for various applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
UL 3239 Yellow Wire 0.056in Conductor Diameter
$39.99
Quantity: 1
Claim Your Seller Account
UL 3239 Yellow Wire 0.056in Conductor Diameter
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UL 3239 Yellow Wire features a high voltage rating from 5 kVDC to 60 kVDC, exceptional flexibility, and resistance to ozone and corona. With conductor sizes ranging from 24 AWG to 10 AWG, this wire meets the VW-1 flame test standard. Ideal for a variety of applications including heaters, furnaces, motors, and power supplies, it offers high temperature resistance up to 150°C, conforming to UL-AWM File Number E174208. The standard construction for UL 3239 ensures reliability, while offering alternative conductor constructions for use up to 200°C.
Product Specifications
Applications 0
HeatersFurnacesOvensDryersMotorsLighting FixturesSignsPower SuppliesCRT DisplaysCorona Treating EquipmentMisc. Electronic Equipment
Note 0
Standard Construction for UL 3239. Different conductor constructions and plating available for use up to 200ºC.
Specifications Color
Yellow
Specifications Conductorstranding Construction
26/30
Specifications Conductor Diameter
0.056 in
Specifications Conductor Size
16
Specifications Direct Current Dc Voltage
5 kV
Specifications Manufacturer
Wiremax
Specifications Nominal Diameter
0.108 in
Specifications Temperature
150 ºC
Specifications Ul Awm File Number
E174208
