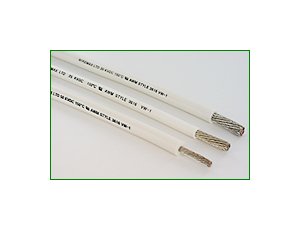

UL 3616 High Voltage Natural Wire - 0.169in Conductor Diameter
UL 3616 High Voltage Natural Wire - 0.169in Conductor Diameter
SKU:WIR-0e025f
UL 3616 High Voltage Wire - Flexible and Ozone Resistant, Meets VW-1 Flame Test. Ideal for Heaters, Motors, and Electronic Equipment.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
UL 3616 High Voltage Natural Wire - 0.169in Conductor Diameter
$34.99
Quantity: 1
Claim Your Seller Account
UL 3616 High Voltage Natural Wire - 0.169in Conductor Diameter
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UL 3616 Wire from Wiremax is a top-tier solution designed for high voltage applications, boasting a DC Voltage range of 20 kV to 60 kV. With a highly flexible construction featuring 8 AWG to 2 AWG conductors, this wire is ozone and corona resistant, ensuring exceptional durability. It meets the rigorous VW-1 flame test standard, making it ideal for a wide range of applications including heaters, furnaces, ovens, motors, generators, and electronic equipment with high voltage and current requirements. This wire adheres to the standard construction specifications of UL 3616, providing reliability and performance in demanding environments.
Product Specifications
Applications 0
HeatersFurnacesOvensDryersMotorsGeneratorsElectronic Equipment Requiring High Voltage and High Current RequirementsCorona Treating Equipment
Note 0
Standard Construction for UL 3616.
Specifications Color
Natural
Specifications Conductorstranding Construction
133/29
Specifications Conductor Diameter
0.169 in
Specifications Conductor Size
8
Specifications Direct Current Dc Voltage
20 kV
Specifications Manufacturer
Wiremax
Specifications Nominal Diameter
0.270 in
Specifications Temperature
150 ºC
Specifications Ul Awm File Number
E174208
