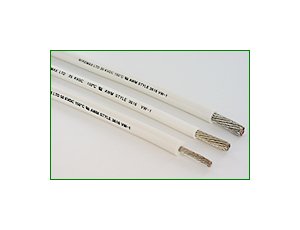

UL 3616 Natural Wire, 0.269in Conductor Diameter by Wiremax

Name: UL 3616 Natural Wire, 0.269in Conductor Diameter by Wiremax
Brand: Connectronics Corp.
SKU: WIR-878319
Price: 25.99 USD
Availability: OutOfStock

SKU:WIR-878319

High-voltage UL 3616 Natural Wire with exceptional flexibility and ozone resistance by Wiremax. Ideal for heaters, furnaces, and motors.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UL 3616 Natural Wire by Wiremax excels in high voltage applications, with a DC voltage rating of 45 kV and exceptional flexibility. Featuring a 133/0.0177 conductor/stranding construction, this wire is ozone, corona resistant, and complies with the VW-1 flame test. Ideal for heaters, furnaces, motors, and electronic equipment needing high voltage and current. This Wiremax product meets UL 3616 standard construction requirements.

Product Specifications

Applications 0

HeatersFurnacesOvensDryersMotorsGeneratorsElectronic Equipment Requiring High Voltage and High Current RequirementsCorona Treating Equipment

Note 0

Standard Construction for UL 3616.

Specifications Color

Natural

Specifications Conductorstranding Construction

133/0.0177

Specifications Conductor Diameter

0.269 in

Specifications Conductor Size

Specifications Direct Current Dc Voltage

45 kV

Specifications Manufacturer

Wiremax

Specifications Nominal Diameter

0.513 in

Specifications Temperature

150 ÂºC

Specifications Ul Awm File Number

E174208
