UL-Approved JSU Series Power Supply Junction Box
UL-Approved JSU Series Power Supply Junction Box
SKU:WAL-1b3661
Enhance equipment reliability with the UL-Approved JSU Series Power Supply Junction Box. Choose from 12Vdc/1.5A or 24Vdc/0.75A configurations for dependable power regulation.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
UL-Approved JSU Series Power Supply Junction Box
$34.99
Quantity: 1
Claim Your Seller Account
UL-Approved JSU Series Power Supply Junction Box
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

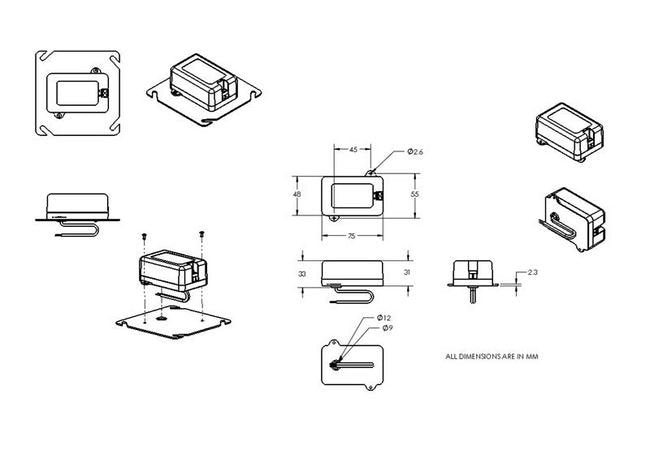

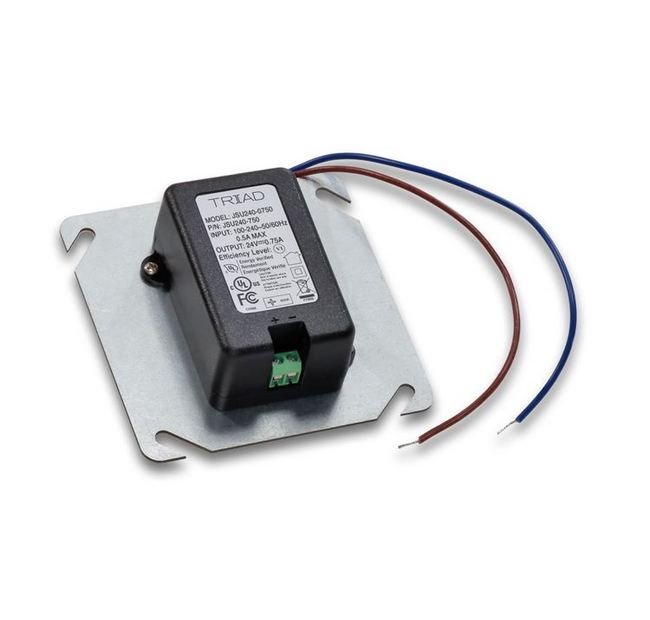

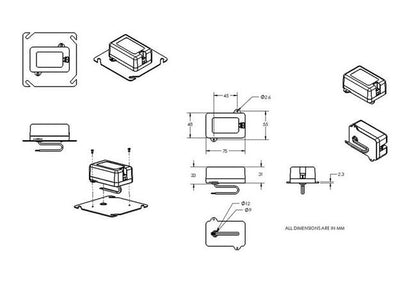

The UL-Approved JSU Series Power Supply Junction Box is designed for hardwiring stationary equipment, ensuring a secure power connection without the hassles of traditional plug-in power supplies. Available in 12Vdc/1.5A or 24Vdc/0.75A configurations, this junction box offers precise regulation with ±5% line and load regulation and low ripple and noise levels of 150mV peak-to-peak. With a standby power of only 100mW, it promotes energy efficiency while providing reliable performance. The compact dimensions of 2.95in (H) x 1.89in (W) x 1.22in (D) make installation easy and convenient.
Product Specifications
Case Dimensions Depth D
1.22 in | 31.00 mm
Case Dimensions Height H
2.95 in | 75 mm
Case Dimensions Width W
1.89 in | 48 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Plug
Hard Wired | North America
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
18.00 W
Specifications Output Current Dc
0.75 A
Specifications Output Type
DC
Specifications Output Voltage Dc
24.0 V
Specifications Type
Switchmode
