UL Rated CST Series Low Frequency Current Sense Transformers

UL Rated CST Series Low Frequency Current Sense Transformers

CUR-56e148

Detect current flow accurately with UL Rated CST Series Transformers. Operating between 50-60 Hz, reliable and precise.

$49.99
$49.99
Sale

Initiate Order

UL Rated CST Series Low Frequency Current Sense Transformers

UL Rated CST Series Low Frequency Current Sense Transformers

$49.99

Quantity: 1

Claim Your Seller Account

UL Rated CST Series Low Frequency Current Sense Transformers

UL Rated CST Series Low Frequency Current Sense Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

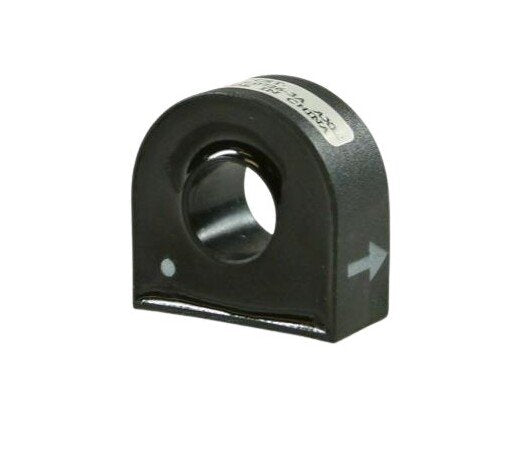

The CST Series Low Frequency Current Sense Transformers by Triad are precision-crafted to detect current flow in conductors with exceptional accuracy and reliability. Operating seamlessly at 50-60 Hz, these transformers feature a primary current of 15A and a terminating resistor of 100 Ohm. Constructed using UL rated 130°C materials, these transformers ensure peak performance within a temperature range of -10 to 65°C. With an overall turn ratio of 1000:1 and a compact size, these transformers offer superior functionality and durability for various applications.

Product Specifications

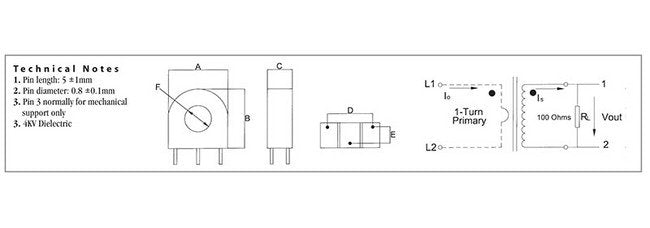

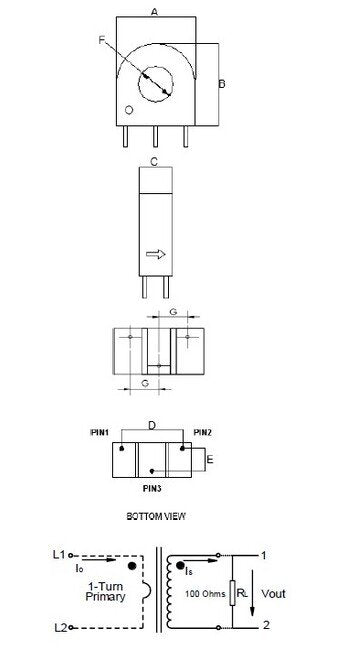

Specifications Case Dimension A
23.50 mm
Specifications Case Dimension B
24.80 mm
Specifications Case Dimension C
12.00 mm
Specifications Case Dimension D
15.00 mm
Specifications Case Dimension E
7.50 mm
Specifications Case Dimension F
8.50 mm
Specifications Case Dimension G
7.50 mm
Specifications Electical Load At Rated Primary Current Ip 100
0.0971 V·A
Specifications Nominal Dcr
40.00 Ohm
Specifications Overall Turn Ratio
1000:1
Specifications Primary Current Ip
15 A
Specifications Reference Net Weight
20.0 g
Specifications Terminating Resistor
100 Ohm | 0.0230 W
Specifications Ul Rated Material Temperature
130 ºC
Technical Notes 0
Pin3 for mechanical support only.Pin diameter is 0.8±0.1 mm.Pin length is 5±1mm.Accuracy: ±3% from 2 to 20A.Operating Temperature: -10 to 65°CStorage Temperature: -25 to 85°C
