UL Recognized Flexible Steel Conduit - Type DE-710 - Heavy-Duty Flexibility for OEM and Industrial Applications

Name: UL Recognized Flexible Steel Conduit - Type DE-710 - Heavy-Duty Flexibility for OEM and Industrial Applications
Brand: Anamet Electrical, Inc.
SKU: FLE-775dca
Price: 49.99 USD
Availability: OutOfStock

SKU:FLE-775dca

UL Recognized Type DE-710 - Heavy-Duty Flexible Steel Conduit for OEMs & industrial use. Crush/corrosion-resistant with custom lengths & bend flexibility.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

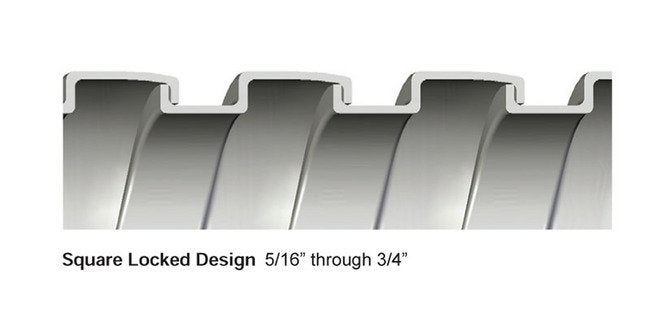

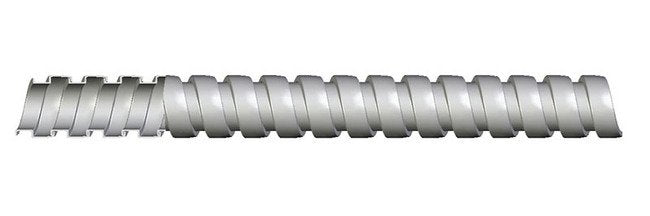

The Type DE-710 Heavy-Duty Flexible Steel Conduit is a premium solution designed for OEM and industrial applications. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core, this conduit offers exceptional crush and corrosion resistance. UL recognized as part of a manufactured wiring system, it ensures reliability and safety. With a wide range of specifications including custom length options and flexible bend radius, this conduit provides the flexibility and strength required for various installations. Perfect for office furnishings, workstations, and partitions, it meets Article 604 Manufactured Wiring Systems of NEC standards.

Product Specifications

Application 0

Extra FlexibleExtra Strength+450°F Maximum Temperature

Installation 0

Used in office furnishings, work stations and partitions.Exceptional flexibility for tight "U" bend radius.Complies with UL Recognized File No. E-39679; DXUZ2. Size range, actual I.D. 5/16" through 3/4".Available in custom-cut lengths.+450ºF maximum temperature.

Nec Articles 0

Article 604 Manufactured Wiring Systems

Specifications Approx Inside Bend Radius

1.5 in | 38.1 mm

Specifications Approx Weight Per 100 Ft

15 lbs | 6.8 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

5102-24-00 | 5102-30-00 | 55-28-37-01 | 55-28-37-02 | 55-28-37-03 | 94402 | AFS-1/2 | FlexCon Extra | SLINKY FLEX | USL-120

Specifications Industry Certifications

RU Certification

Specifications Inside Diameter

0.500 to 0.525 in | 12.700 to 13.335 mm

Specifications Jacket Material

None

Specifications Length

Custom

Specifications Nominal Size

1/2 in | 13 mm

Specifications Note

Longer length reels available on request - consult factory.

Specifications Outside Diameter

0.644 to 0.669 in | 16.358 to 16.993 mm

Specifications Packaging

Contact Anamet

Specifications Type

DE - 710
