UL94V-2 03 Series Edge Board Mount with .187 Chassis Hole

Name: UL94V-2 03 Series Edge Board Mount with .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-894795
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-894795

Durable UL94V-2 Edge Board Mount for secure PC board edge locking and easy installation. RoHS compliant with wide temp range.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UL94V-2 03 Series Edge Board Mount x .187 Chassis Hole offers easy installation by hand, secure locking to PC board edges, and a durable construction of Nylon 66 ensuring reliability in various applications. This circuit board support is RoHS compliant and meets ASTM D 4066, PA111 standards. With a temperature range of -40 to 185°F, it provides dependable performance even in extreme conditions.

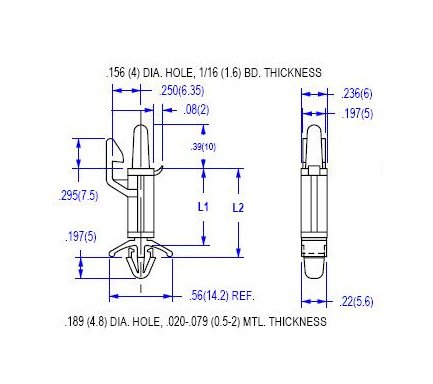

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L1

.500 (12.7) inches (mm)

Specifications Dim L2

.591 (15.0) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

UL94V-2 03 Series Edge Board Mount with .187 Chassis Hole
