UL94V-2 Nylon Circuit Board Support: .217 Chassis Hole x .020-.039 Thickness

Name: UL94V-2 Nylon Circuit Board Support: .217 Chassis Hole x .020-.039 Thickness
Brand: All Electronics Hardware
SKU: 01C-e895d5
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-e895d5

Secure and space-saving Circuit Board Support for .020-.039 Chassis Thicknesses

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UL94V-2 Nylon Circuit Board Support is designed for easy installation on chassis with a thickness range of .020-.039 inches. Featuring a secure yet releasable locking mechanism, it ensures minimal protrusion under the chassis. This product, made of durable Nylon 66 material, is RoHS compliant and offers a temperature range of -40 to 185F (-40 to 85C). Ideal for circuit board support applications, it comes in a pack of 500 units and meets ASTM D 4066 and PA0113 standards.

Product Specifications

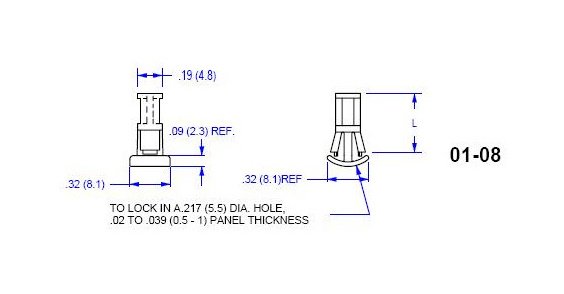

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.320 (8.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

UL94V-2 Nylon Circuit Board Support: .217 Chassis Hole x .020-.039 Thickness
