UL94V-2 Nylon Circuit Board Support with .187 Chassis Hole

Name: UL94V-2 Nylon Circuit Board Support with .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-ba0bb5
Price: 19.99 USD
Availability: OutOfStock

SKU:01C-ba0bb5

Securely support circuit boards with our UL94V-2 Nylon Edge Board Mount, RoHS compliant and ASTM certified for durability.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

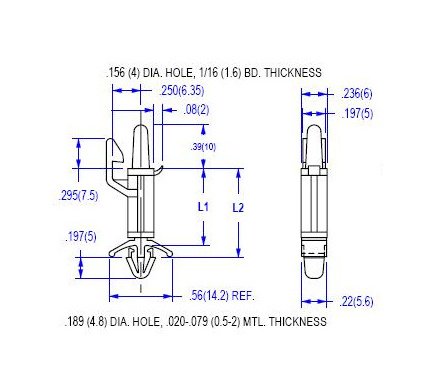

The 03 Series: Edge Board Mount x .187 Chassis Hole offers easy manual installation and secure locking to PC board edges. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), this circuit board support is RoHS compliant with a temperature range of -40 to 185F (-40 to 85C). It features dimensions of L1: .378 (9.6) inches, L2: .469 (11.9) inches, suitable for panel thickness of .063 (1.6) inches and chassis thickness ranging from .020 to .079 inches. Trust in its ASTM D 4066, PA111 certification for reliable circuit board support.

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L1

.378 (9.6) inches (mm)

Specifications Dim L2

.469 (11.9) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

UL94V-2 Nylon Circuit Board Support with .187 Chassis Hole
