UL94V-2 Nylon Edge Board Mount x .187 Chassis Hole - 02 Series

Name: UL94V-2 Nylon Edge Board Mount x .187 Chassis Hole - 02 Series
Brand: All Electronics Hardware
SKU: 01C-d88015
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-d88015

Easy-to-install UL94V-2 Nylon Edge Board Mount reducing assembly time. RoHS compliant & temp-resistant (-40 to 185F).

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

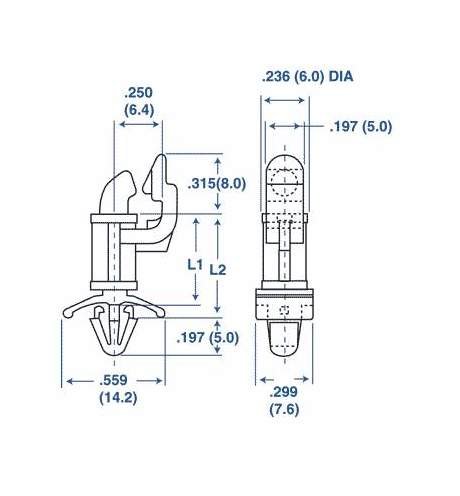

The UL94V-2 Nylon Edge Board Mount x .187 Chassis Hole from the 02 Series offers hassle-free manual installation, reducing assembly time significantly. With dimensions of .752 (19.1) inches (mm) for L1 and .843 (21.4) inches (mm) for L2, this support is designed for panel thicknesses ranging from .063 (1.6) to chassis thicknesses of .020 - .079 (.5 - 2.0) inches (mm). Compliant with RoHS standards, this product is temperature-resistant from -40 to 185F (-40 to 85C), making it a reliable choice for various applications.

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L1

.752 (19.1) inches (mm)

Specifications Dim L2

.843 (21.4) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

UL94V-2 Nylon Edge Board Mount x .187 Chassis Hole - 02 Series
