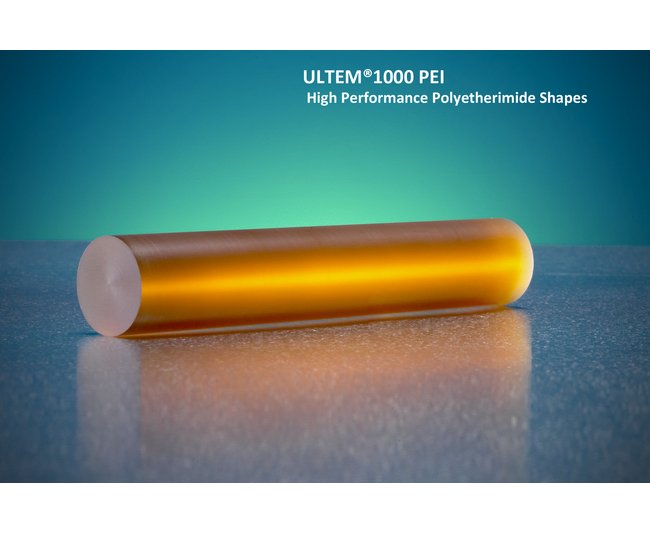

ULTEM 1000 Unfilled Polyetherimide Rod - Natural
ULTEM 1000 Unfilled Polyetherimide Rod - Natural
SKU:SHA-61bb2c
High-performance ULTEM 1000 Unfilled Polyetherimide Rod with superior strength, chemical resistance, and flame-retardant properties. Meet ASTM and UL standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
ULTEM 1000 Unfilled Polyetherimide Rod - Natural
$99.99
Quantity: 1
Claim Your Seller Account
ULTEM 1000 Unfilled Polyetherimide Rod - Natural
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ULTEM 1000 Unfilled Polyetherimide Rod offers exceptional high-performance properties ideal for a wide range of applications. This stock shape exhibits high strength at elevated temperatures, excellent chemical resistance, and flame-resistant properties with low smoke emission. With a standard color of light amber, this ULTEM PEI rod meets ASTM D5205 and UL94 V-0 standards, making it a reliable choice for industries requiring superior mechanical strength and environmental stress crack resistance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Advantages 0
UL94 V-O.Extremely Low NBS Smoke Evolution.FDA Compliant (Natural Un-filled).Superior Limiting Oxygen Index.Broad Chemical Resistance.High Dielectric Strength & Stability.Exceptional Mechanical Strength.
Applications 0
Burn-in Test Sockets Connectors Automotive Components Valves Electrical Fittings Microwave Components Medical Components
Specifications Coefficient Of Linear Thermal Expansion
3.1 x 10-5 in/in/ºF
Specifications Compressive Modulus
480000 psi
Specifications Compressive Strength At Yield 73f Astm D695
21900 psi
Specifications Deflection Temperature At 264 Psi 0250 Astm D648
392 ºF
Specifications Deflection Temperature At 66 Psi 0250 Astm D648
410 ºF
Specifications Diameter
1.875 in
Specifications Dielectric Strength In Air Astm D149
831 V/m
Specifications Dielectric Strength In Oil Astm D149
710 V/m
Specifications Elongation At Break 73f Astm D638
60 %
Specifications Elongation Yield 73f Astm D638
7 %
Specifications Flammability Rating Ul 94
V0
Specifications Flexural Modulus 482f250c
480000 psi
Specifications Flexural Strength 73f Astm D790
22000 psi
Specifications Hardness Rockwell Astm D785
M109
Specifications Impact Strength Notched At 73f Astm D256
1 ft·lb/in
Specifications Impact Strength Un Notched
25 ft·lb/in
Specifications Length
4 ft | 8 ft
Specifications Maximum Operating Temperature
338 ºF
Specifications Shear Strength Ultimate 73f
15000 psi
Specifications Specific Gravity Astm D792
1.27
Specifications Tensile Modulus 73f Astm D638
430000 psi
Specifications Tensile Strength At Break 73f
15200 psi
Specifications Tensile Strength At Yield 73f Astm D638
15200 psi
Specifications Volume Resistivity 0062 Astm D257
1.0 x 1017 ohm·cm
Specifications Water Absorption 24 Hrs 73f Astm D570
0.25 %
Specifications Water Absorption Equilibrium 73f Astm D570
1.25 %
Specifications Weight
1.520 lb/ft
