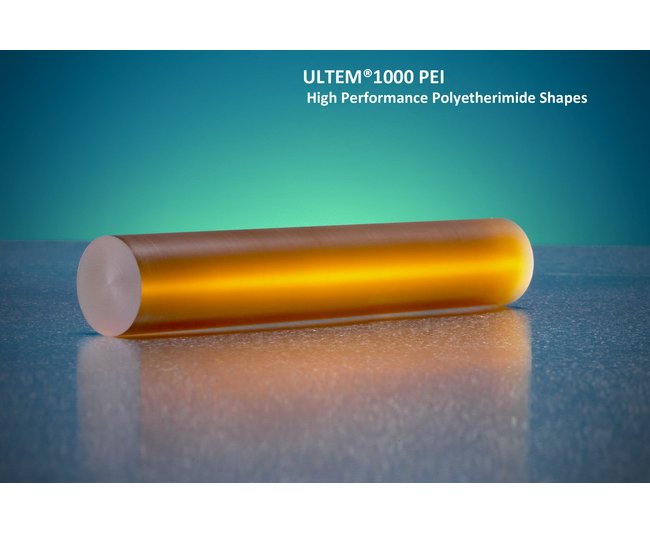

The ULTEM® 1000 Polyetherimide Rod is a high-performance thermoplastic material known for its exceptional properties. With high strength at elevated temperatures, broad chemical resistance, flame resistance, and low smoke emission, this material is ideal for various applications. ULTEM® 1000 boasts ASTM D5205 PEI0113 and UL94 V-0 certifications, making it a top choice for industries requiring reliable and durable materials. Its light amber color, combined with superior mechanical strength and FDA compliance, further enhance its appeal.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Advantages 0
UL94 V-O.Extremely Low NBS Smoke Evolution.FDA Compliant (Natural Un-filled).Superior Limiting Oxygen Index.Broad Chemical Resistance.High Dielectric Strength & Stability.Exceptional Mechanical Strength.
Applications 0
Burn-in Test Sockets Connectors Automotive Components Valves Electrical Fittings Microwave Components Medical Components
Specifications Coefficient Of Linear Thermal Expansion
3.1 x 10-5 in/in/ºF
Specifications Compressive Modulus
480000 psi
Specifications Compressive Strength At Yield 73f Astm D695
21900 psi
Specifications Deflection Temperature At 264 Psi 0250 Astm D648
392 ºF
Specifications Deflection Temperature At 66 Psi 0250 Astm D648
410 ºF
Specifications Diameter
1.500 in
Specifications Dielectric Strength In Air Astm D149
831 V/m
Specifications Dielectric Strength In Oil Astm D149
710 V/m
Specifications Elongation At Break 73f Astm D638
60 %
Specifications Elongation Yield 73f Astm D638
7 %
Specifications Flammability Rating Ul 94
V0
Specifications Flexural Modulus 482f250c
480000 psi
Specifications Flexural Strength 73f Astm D790
22000 psi
Specifications Hardness Rockwell Astm D785
M109
Specifications Impact Strength Notched At 73f Astm D256
1 ft·lb/in
Specifications Impact Strength Un Notched
25 ft·lb/in
Specifications Length
4 ft | 8 ft
Specifications Maximum Operating Temperature
338 ºF
Specifications Shear Strength Ultimate 73f
15000 psi
Specifications Specific Gravity Astm D792
1.27
Specifications Tensile Modulus 73f Astm D638
430000 psi
Specifications Tensile Strength At Break 73f
15200 psi
Specifications Tensile Strength At Yield 73f Astm D638
15200 psi
Specifications Volume Resistivity 0062 Astm D257
1.0 x 1017 ohm·cm
Specifications Water Absorption 24 Hrs 73f Astm D570
0.25 %
Specifications Water Absorption Equilibrium 73f Astm D570
1.25 %
Specifications Weight
0.973 lb/ft
