Ultra High Pressure Connection Collar - 60,000 psi MAWP
Ultra High Pressure Connection Collar - 60,000 psi MAWP
SKU:BEA-d62430
Explore our Ultra High Pressure Connection Collar - designed for up to 60,000 psi applications. Ensures precise and leak-proof connections for critical operations.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Ultra High Pressure Connection Collar - 60,000 psi MAWP
$129.99
Quantity: 1
Claim Your Seller Account
Ultra High Pressure Connection Collar - 60,000 psi MAWP
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra High Pressure Connection Collar is a robust and reliable component designed by Autoclave Engineer to withstand pressures up to 60,000 psi (4136 bar). This key connection piece is specifically crafted for use with 100VM and 150V valves and fittings, providing a secure and leak-proof interface for critical applications requiring extreme pressure tolerance. With a tube size of 5/16 inches, this collar ensures precision and durability in demanding high-pressure environments, making it an essential choice for industries that prioritize performance and safety.
Product Specifications
Manufacturing Notes 0

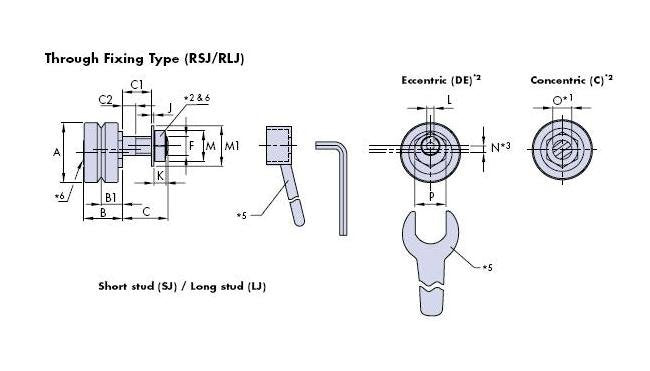

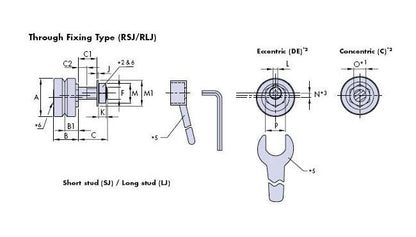

For 1: It is recommended that holes to suit bearing mounting studs should be reamed to tolerance F6 for a sliding fit.For 2: Nuts and washers are supplied with both concentric and eccentric RSJ/RLJ type bearings.For Dimension N & R: 'N' is the eccentric offset due to the double eccentric design (2 x N = total stroke). R dimension is both the eccentric offset of the adjusting nut and total stroke at the bearing centerline.For Dimension B1: Controlled height (CHK) bearings are selected in ±0.010mm bands in respect of the B1 dimension. They are supplied in sets of up to 50 parts as standard, with larger sets on request.For 5: For adjusting tool part numbers see table. For adjustment procedure and fixing nut tightening torques see 58.For 6: Fasteners for the through fixing type bearings are black on the concentric version and bright zinc plated on the eccentric version for identification purposes, except stainless steel type.For 7: Stainless steel bearings are only available nitrile sealed
Specifications Dimension A
18 mm
Specifications Dimension B
12.4 mm
Specifications Dimension B1
6.75 in
Specifications Dimension C1 Rlj
10 mm
Specifications Dimension C1 Rsj
3.4 mm
Specifications Dimension C2 Rlj
2.5 mm
Specifications Dimension C2 Rsj
2.2 mm
Specifications Dimension C Rlj
14 mm
Specifications Dimension C Rsj
7.4 mm
Specifications Dimension Q
2 mm
Specifications Dimension R
1.2 mm
Specifications Dimension S
8 in
Specifications Dimension S1
10.5 mm
Specifications Dimension T
10 mm
Specifications Dimension T1
4 mm
Specifications Dimension T2
8 mm
Specifications Dimension U1
54 mm
Specifications Dimension U 01
38 mm
Specifications Dimension V
11 mm
Specifications Dimension W
24.5 mm
Specifications Dimension X
M4
Specifications Dimension Y
7 mm
Specifications Dimension Z
7 mm
Specifications For Use With Curved Segments
REV, RIV
Specifications For Use With Ring Slides
R20
Specifications For Use With Track System
TNV
