Ultra High Pressure Connection Collar, 60,000 psi MAWP
Ultra High Pressure Connection Collar, 60,000 psi MAWP
SKU:LUB-73cd60
Explore our Ultra High Pressure Connection Collar for 60,000 psi applications. Precision-engineered for reliability and safety.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ultra High Pressure Connection Collar, 60,000 psi MAWP
$49.99
Quantity: 1
Claim Your Seller Account
Ultra High Pressure Connection Collar, 60,000 psi MAWP
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra High Pressure Connection Collar is designed by Autoclave Engineers to withstand pressures up to 60,000 psi MAWP, ensuring reliable performance in the most demanding industrial environments. This collar is compatible with 9/16-inch tubing and is specifically engineered for seamless integration with 30VM, 40VM, and 60VM valves and fittings. Its precision engineering and durable construction make it a trusted choice for high-pressure applications where safety and performance are paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0

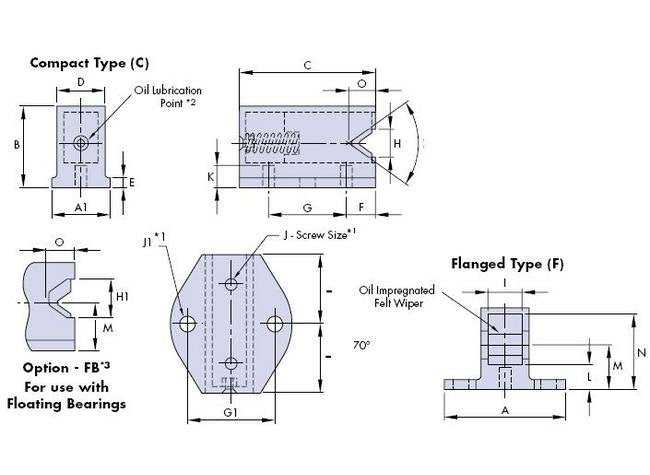

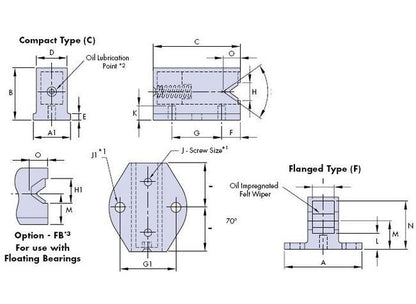

For 1: 2 machine screws with cross-recessed pan heads to DIN7985A are supplied for fixing the flanged type lubricator (see J1 in table). Additionally, 2 self tapping screws for plastic with PT thread form and cross-recessed pan heads are supplied for the compact type lubricator (see J in table).For 2: Lubrication interval depends on length of stroke, duty and environmental factors. Replenish lubricant as necessary using a 68 viscosity EP mineral oil.For 3: Size 25,44 & 76 lubricators are available with increased clearance "H1" to accommodate the "V float" of the floating bearings
Specifications Dimension A1 Type C
12 mm
Specifications Dimension A Type F
25 mm
Specifications Dimension B
16.5 mm
Specifications Dimension C
28 mm
Specifications Dimension D
9.9 mm
Specifications Dimension E
2 mm
Specifications Dimension F
6 mm
Specifications Dimension G1 01
18 mm
Specifications Dimension G 01
16 mm
Specifications Dimension H
5.5 mm
Specifications Dimension H1
7.1 mm
Specifications Dimension I
7 mm
Specifications Dimension J1 Hole
3.2 mm
Specifications Dimension J1 Screw Size
M3 x 8
Specifications Dimension J
3 mm
Specifications Dimension J Length
10 mm
Specifications Dimension K
4.5 mm
Specifications Dimension L
5 mm
Specifications Dimension M
9 mm
Specifications Dimension N
15.25 mm
Specifications Dimension O
5.5 mm
Specifications For Use With Curved Segments
RES, RIS
Specifications For Use With Ring Discs
R25
Specifications For Use With Ring Slides
R25
Specifications For Use With Track System
TNS 25, TNSE
Specifications Weight
6 g
