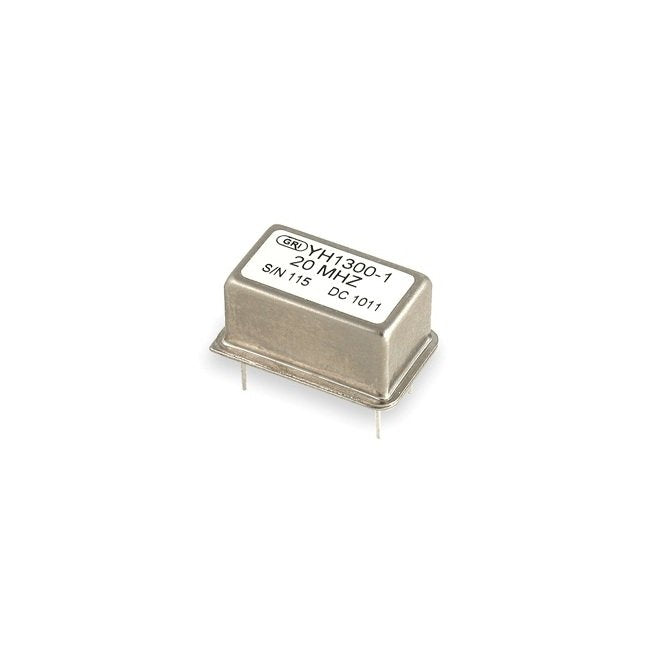

The Ultra Low g-Sensitivity OCXO Crystal Oscillator is precision-engineered for superior frequency stability in the 10-50MHz range, offering tight accuracy and reliable performance. With output options in CMOS Squarewave or Sinewave, this compact 20.32 x 12.70 x 9.40 mm device ensures low harmonics at -20 dBc and exceptional phase noise performance. With temperature stability options like -20 to +70°C and -40 to +85°C, it meets stringent industry standards for government and institutional procurement, making it ideal for mission-critical applications.
Product Specifications
Phase Noise Performance 100 Hertz Hz Frequency Offset
-130 dBc/Hz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-158 dBc/Hz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-100 dBc/Hz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-158 dBc/Hz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-155 dBc/Hz
Phase Noise Performance Note For Phase Noise
Typical at 10 MHz, 5.0 V
Specifications Aging Per Year
<0.5 ppm
Specifications Frequency Versus Supply
±3 x 10-9 for a 5% Change
Specifications Harmonics
-20 dBc
Specifications Input Direct Current Dc Voltage
+3.3 V | +5 V
Specifications Input Power
Idle - <1.0 W at +25 ºC | Warmup - <5 W for 5 minutes
Specifications Maximum Frequency
50 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Acceleration Sensitivity
Worst axis, DC to 2 kHz
Specifications Note For Frequency Adjustment
0 to Vsupply EFC
Specifications Note For Harmonics
Sinewave Version
Specifications Note For Input Voltage
At turn-on the voltage must rise to >3 V within 15 msec
Specifications Note For Symmetry
Squarewave Version
Specifications Ordering Example
YH1300-N37-S-5.0-10.0 MHz(Model-Stability-Output-Input V-Frequency)
Specifications Output
CMOS Squarewave; 15 pF load (Option C) | Sinewave, 0 dBm minimum into 50 ohms (Option S)

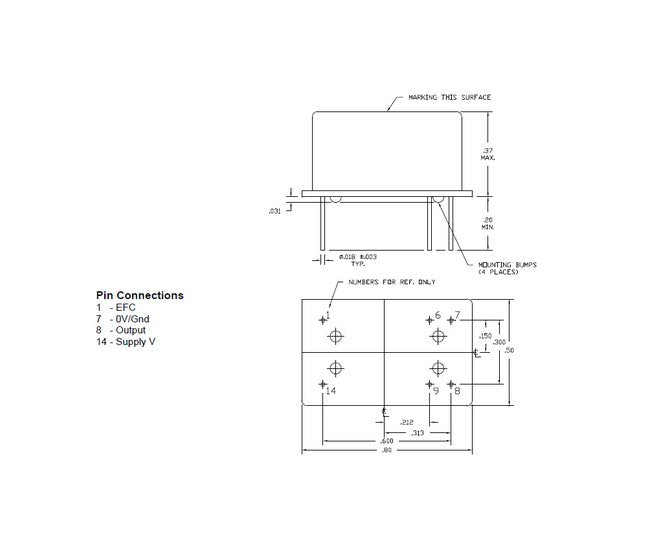

Specifications Pin Configuration
1 - EFC | 14 - Supply Voltage | 7 - 0 V/Gnd | 8 - Output
Specifications Positive Slope Frequency Adjust
±5.0 ppm
Specifications Standard Sd Option Acceleration Sensitivity
<7 x 10-11 /g
Specifications Symmetry
50 %
Specifications Symmetry Tolerance
±10 %
Temperature Stability Option G27
Temperature Range: -10 to +60 ºC | Tolerance: ±2 x 10-7
Temperature Stability Option N37
Temperature Range: -20 to +70 ºC | Tolerance: ±3 x 10-7
Temperature Stability Option N47
Temperature Range: -40 to +70 ºC | Tolerance: ±4 x 10-7
Temperature Stability Option T57
Temperature Range: -40 to +85 ºC | Tolerance: ±5 x 10-7
