Ultra-Low G-Sensitivity VCXO Quartz Crystal Oscillator
Ultra-Low G-Sensitivity VCXO Quartz Crystal Oscillator
SKU:VCX-5fb8dd
Discover superior precision with our Ultra-Low G-Sensitivity VCXO Quartz Crystal Oscillator. Perfect for telecom and mobile applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Ultra-Low G-Sensitivity VCXO Quartz Crystal Oscillator
$99.99
Quantity: 1
Claim Your Seller Account
Ultra-Low G-Sensitivity VCXO Quartz Crystal Oscillator
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your precision applications with our Ultra-Low G-Sensitivity VCXO Quartz Crystal Oscillator. Offering exceptional phase noise performance and rugged design, this oscillator operates within a frequency range of 60 to 130 MHz with outstanding stability. With minimal aging tolerance and low acceleration sensitivity, this oscillator ensures reliability over time. Compliant with RoHS standards and tailored for telecommunications, mobile radio, and airborne communication applications, our oscillator is a top choice for professionals seeking quality and durability in their systems.
Product Specifications
Applications Applications
Telecommunications Mobile radio Mobile instrumentation Airborne communication Wireless communication Microwave receiver
Electrical Characteristics Maximum Acceleration Sensitivity Lg
0.5 ppb/g
Electrical Characteristics Maximum Acceleration Sensitivity Sd
2.0 ppb/g
Electrical Characteristics Maximum Acceleration Sensitivity Ulg
0.09 ppb/g
Electrical Characteristics Maximum Aging At 10 Years 100 Megaher
3 ppm
Electrical Characteristics Maximum Aging Tolerance For 1 Year
1.0 ppm
Electrical Characteristics Maximum Direct Current Dc Supply Volt
5.25 V
Electrical Characteristics Maximum Frequency Versus Load For A 1
0.1 ppm
Electrical Characteristics Maximum Frequency Versus Voltage For
0.1 ppm
Electrical Characteristics Maximum Harmonics
-45 dBc
Electrical Characteristics Maximum Nominal Frequency At Sinewave
130 MHz
Electrical Characteristics Maximum Spurious
-90 dBc
Electrical Characteristics Maximum Supply Current
30 mA
Electrical Characteristics Minimum Direct Current Dc Supply Volt
4.75 V
Electrical Characteristics Minimum Level 50 O Load
10 dBM
Electrical Characteristics Minimum Nominal Frequency At Sinewave
60 MHz
Electrical Characteristics Note For Acceleration Sensitivity
Acceleration Sensitivity is worst axis tested at 90 Hz, 10 g
Electrical Characteristics Note For Frequency Stability
Other Stability Available
Electrical Characteristics Direct Current Dc Supply Volt
5.0 V
Electrical Characteristics Electronic Frequency Control
10 ppm
Electrical Characteristics Frequency Stability At 20 To
15 ppm
Electrical Characteristics Frequency Stability At 40 To
20 ppm
Electrical Characteristics Load
50 Ohms
Environmental And Mechanical Specifications Random Vibration
StandardMIL-STD-202Method, Condition214, Cond I-ADescription0.3 PSD, 20.7 G rms
Environmental And Mechanical Specifications Shock
StandardMIL-STD-202Method, Condition213, Cond CDescription30 g, 11 ms, sawtooth
Features Features
Sinewave output RoHS compliant
Phase Noise Performance Phase Noise At 10 Megahertz Mhz
-170 dBc/Hz
Recommendation And General Information Marking
Line 1: Greenray logoLine 2: ModelLine 3: FrequencyLine 4: Serial Number + Data Code (YYWW)Line 5: Lot Number
Recommendation And General Information Operating Temperature
-40 to +85 ºC
Recommendation And General Information Package Weight
<3 g
Recommendation And General Information Shipping
Tray Pack
Recommendation And General Information Soldering Instruction
Hand | Reflow Soldering
Recommendation And General Information Storage Temperature
-55 to +85 ºC
Specifications Direct Current Dc Supply Voltage
5 V

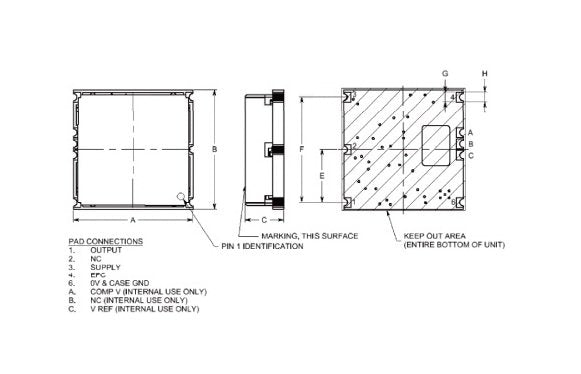

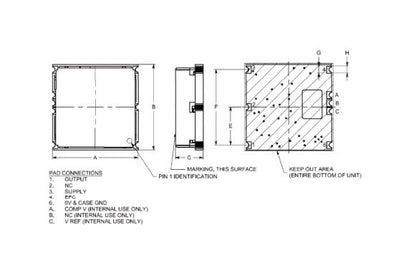

Specifications Package Size
17.3 mm²
