The Ultra-Low Phase Noise VCXO from Greenray Industries redefines precision with its exceptional performance. This SMD oscillator boasts low g-sensitivity and ultra-low phase noise, making it ideal for applications in telecommunications, mobile radio, and airborne communications. With a compact design and RoHS compliance, this oscillator ensures reliability and performance in demanding environments. Experience unmatched stability and precision with this cutting-edge oscillator.
Product Specifications
Applications Applications
TelecommunicationsHigh-shock electronicsMobile radioMobile instrumentationAirborne communicationsWireless communicationsMicrowave receivers
Electrical Characteristics Maximum Absolute Pull Range At All Co
10 ppm
Electrical Characteristics Maximum Aging Tolerance For 1 Year
1.0 ppm
Electrical Characteristics Maximum Direct Current Dc Supply Volt
5.25 V
Electrical Characteristics Maximum Electronic Frequency Control
10 %
Electrical Characteristics Maximum Harmonics
-30 dBc
Electrical Characteristics Maximum Power Level At 25 Degrees Cel
+14.5 dBM
Electrical Characteristics Maximum Supply Current At 100 Megaher
50 mA
Electrical Characteristics Minimum Absolute Pull Range At All Co
-10 ppm
Electrical Characteristics Minimum Direct Current Dc Supply Volt
4.75 V
Electrical Characteristics Minimum Power Level At 25 Degrees Cel
+9.5 dBM
Electrical Characteristics Direct Current Dc Supply Volt
5.0 V
Electrical Characteristics Electronic Frequency Control
30 ppm
Electrical Characteristics Frequency Stability At 40 To
15 ppm
Electrical Characteristics Frequency Versus Voltage At 0
1 ppm
Electrical Characteristics Load
50 Ohms
Electrical Characteristics Nominal Frequency At 25 Degre
100 MHz
Electrical Characteristics Power Level At 25 Degrees Cel
+12 dBM
Electrical Characteristics Supply Current At 100 Megaher
30 mA
Environmental And Mechanical Specifications Shock
StandardMIL-STD-202Method, ConditionMethod 213, Condition Cond CDescription100 g, 6 ms half-sine, 12.3 ft/sec
Environmental And Mechanical Specifications Vibration
StandardMIL-STD-202Method, ConditionMethod 204, Condition Cond ADescription10 g peak, 10 and 500 Hz
Features Features
Sine Wave outputRoHS compliant
Phase Noise Performance Maximum Phase Noise At 100 Megahertz Mhz
-173 dBc/Hz
Phase Noise Performance Phase Noise At 100 Megahertz Mhz
-175 dBc/Hz
Recommendation And General Information Marking
Line 1: Greenray logo + ModelLine 2: FrequencyLine 3: Serial number + Data code (YYWW)
Recommendation And General Information Operating Temperature
-40 to +85 ºC
Recommendation And General Information Package Weight
3 g
Recommendation And General Information Shipping
Tray

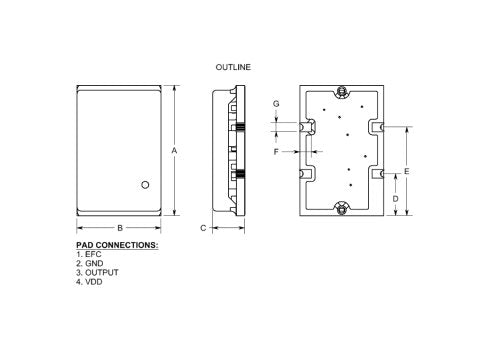

Specifications Package Size
17.3 mm²
Specifications Surface Mount Device Smd Package Width
9.1 mm
