Ultra-Met® On Edge Milling Blank with Hole, 0.160/0.168in
Ultra-Met® On Edge Milling Blank with Hole, 0.160/0.168in
SKU:MIL-6cd95f
Precision On Edge Milling Blank with Hole, 0.160-0.168in thickness, Grade options available
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met® On Edge Milling Blank with Hole, 0.160/0.168in
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met® On Edge Milling Blank with Hole, 0.160/0.168in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met® On Edge Milling Blank with Hole offers precise thickness ranging from 0.160 to 0.168 inches and width between 0.385 to 0.395 inches. With a hole diameter of 0.162 to 0.174 inches and an angle of 78 degrees, this milling blank ensures accuracy in milling operations. Its Grade Availability can be tailored to meet specific requirements upon request, making it a versatile choice for various machining applications.

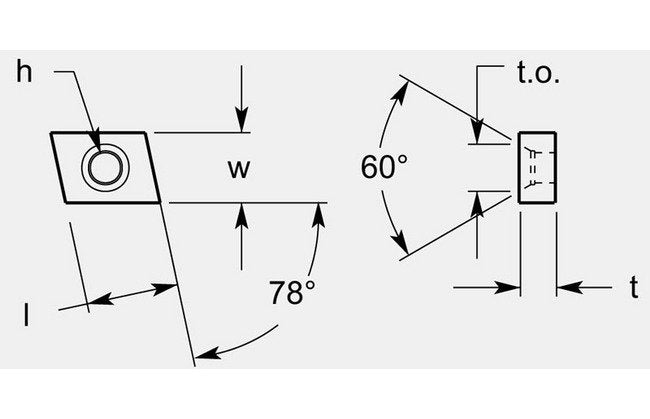

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Angle A
78 º
Dimensional Specification Hole
0.162 / 0.174 in
Dimensional Specification L
0.510 / 0.522 in
Dimensional Specification Thickness T
0.160 / 0.168 in
Dimensional Specification To
0.257 / 0.269 in
Dimensional Specification Width W
0.385 / 0.395 in
Grade Availability Grade Availability
Available on Request
