The Ultra-Met® On Edge Milling Blanks with Hole offer precision and versatility suitable for a wide range of machining applications. With a thickness range of 0.260 to 0.268 inches, these blanks provide exceptional dimensional accuracy and stability to meet the exacting requirements of both consumer and institutional buyers. Featuring a width range of 0.385 to 0.395 inches, a hole diameter of 0.162 to 0.174 inches, and an optimal angle of 78 degrees, these blanks ensure efficient performance and consistent results. Available in Grade Availability on request, these milling blanks deliver superior quality and reliability for demanding machining tasks.
Product Specifications
Classifications Brands
Ultra-Met®

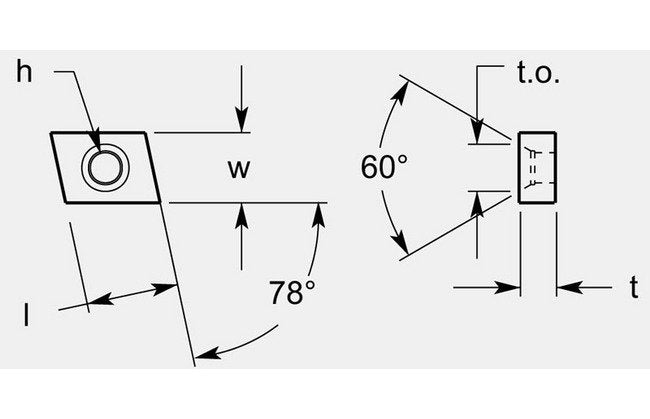

Dimensional Specification Angle A
78 º
Dimensional Specification Hole
0.162 / 0.174 in
Dimensional Specification L
0.510 / 0.522 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Dimensional Specification To
0.257 / 0.269 in
Dimensional Specification Width W
0.385 / 0.395 in
Grade Availability Grade Availability
Available on Request
