Ultra-Met® Square Negative with Hole, 0.135/0.143 in Thickness
Ultra-Met® Square Negative with Hole, 0.135/0.143 in Thickness
SKU:TUR-77292c
Ultra-Met® Square Turning Blank with Hole, 0.135/0.143 in Thickness - Precision meets durability for machining excellence.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met® Square Negative with Hole, 0.135/0.143 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met® Square Negative with Hole, 0.135/0.143 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met® Square Negative with Hole is a top-of-the-line turning blank designed for precision machining. With a thickness range of 0.135 to 0.143 inches, an inscribed circle of 0.514 to 0.520 inches, and an angle of 90 degrees, this blank offers exceptional accuracy and durability. The 82-degree angled hole measuring 0.175 to 0.181 inches adds versatility to your machining projects. Grade availability is customizable based on your requirements, ensuring you get the exact specifications you need for your machining needs. This product meets Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, making it a reliable choice for institutional buyers.

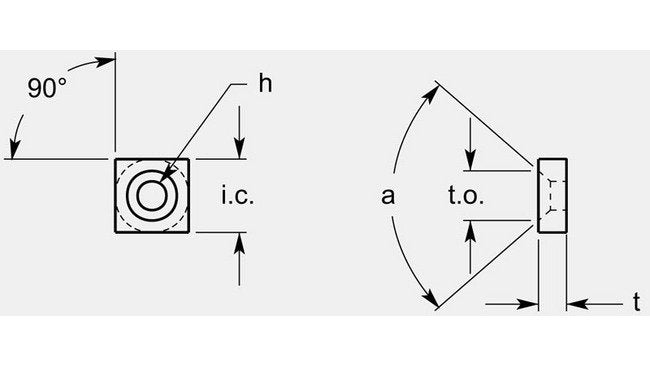

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.175 / 0.181 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.135 / 0.143 in
Dimensional Specification To
0.373 / 0.379 in
Grade Availability Grade Availability
Available on Request
