Ultra-Met® Square Negative with Hole, 0.135 / 0.143 in Thickness
Ultra-Met® Square Negative with Hole, 0.135 / 0.143 in Thickness
SKU:TUR-62a8cb
Get precise and durable turning blanks with the Ultra-Met® Square Negative, 0.135 / 0.143 in Thickness, meeting industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ultra-Met® Square Negative with Hole, 0.135 / 0.143 in Thickness
$49.99
Quantity: 1
Claim Your Seller Account
Ultra-Met® Square Negative with Hole, 0.135 / 0.143 in Thickness
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

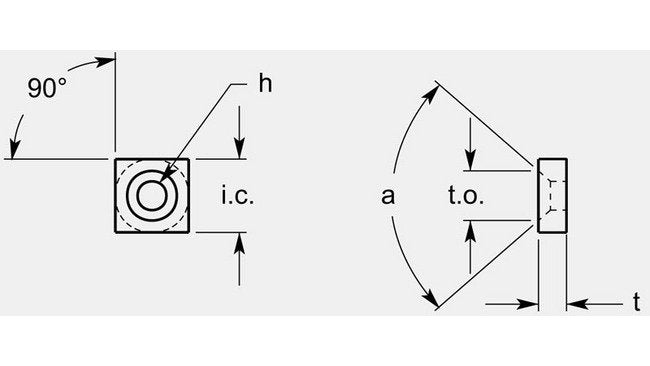

The Ultra-Met® Square Negative with Hole features a precise thickness of 0.135 / 0.143 inches, an Inscribed Circle of 0.577/0.583 inches, and an Angle of 90 degrees. Crafted for turning blanks, this tool offers exceptional durability and accuracy. With a hole diameter of 0.175 / 0.181 inches and a TO dimension of 0.373 / 0.379 inches, it meets stringent industry standards suitable for institutional and government procurement requirements. Grade Availability can be customized upon request.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.175 / 0.181 in
Dimensional Specification Inscribed Circle Ic
0.577/0.583 in
Dimensional Specification Thickness T
0.135 / 0.143 in
Dimensional Specification To
0.373 / 0.379 in
Grade Availability Grade Availability
Available on Request
