Ultra-Met On Edge Milling Blank with Hole, 0.198/0.206 in Thickness
Ultra-Met On Edge Milling Blank with Hole, 0.198/0.206 in Thickness
SKU:MIL-5f778d
Precision-engineered On Edge Milling Blank for superior milling performance. Thickness: 0.198-0.206 in. Available in varying grades upon request.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ultra-Met On Edge Milling Blank with Hole, 0.198/0.206 in Thickness
$39.99
Quantity: 1
Claim Your Seller Account
Ultra-Met On Edge Milling Blank with Hole, 0.198/0.206 in Thickness
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met On Edge Milling Blank with Hole is precision-engineered for supreme performance in milling applications. With a thickness range of 0.198 to 0.206 inches, precise hole dimensions, and an 82° angle, this blank ensures exceptional accuracy and stability during machining. Crafted from premium materials, it offers durability and reliability, meeting stringent industry standards for quality and performance. Available on request in various grades to suit specific milling requirements.

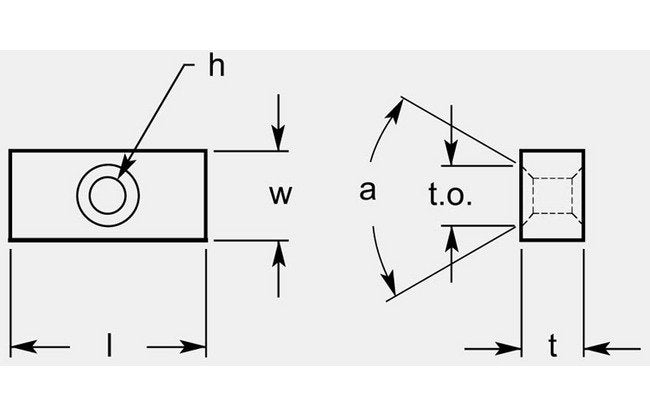

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
82 º
Dimensional Specification Angle A
82 º
Dimensional Specification Hole
0.201 / 0.205 in
Dimensional Specification L
0.640 / 0.650 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Dimensional Specification To
0.306 / 0.316 in
Dimensional Specification Width W
0.389 / 0.395 in
Grade Availability Grade Availability
Available on Request
