Ultra-Met On Edge Milling Blank with Hole, 0.257/0.261 in
Ultra-Met On Edge Milling Blank with Hole, 0.257/0.261 in
SKU:MIL-6d416c
Achieve precision milling with Ultra-Met On Edge Blank, 0.257/0.261 in thickness. Custom grades available on request.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ultra-Met On Edge Milling Blank with Hole, 0.257/0.261 in
$49.99
Quantity: 1
Claim Your Seller Account
Ultra-Met On Edge Milling Blank with Hole, 0.257/0.261 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met On Edge Milling Blank with Hole is precision-engineered for exceptional performance in industrial applications. With a thickness of 0.257/0.261 inches, width of 0.512/0.530 inches, and hole diameter of 0.216/0.224 inches, it offers precise dimensions for milling processes. The Grade Availability can be customized upon request to meet specific project requirements, ensuring versatility and efficiency in machining operations.

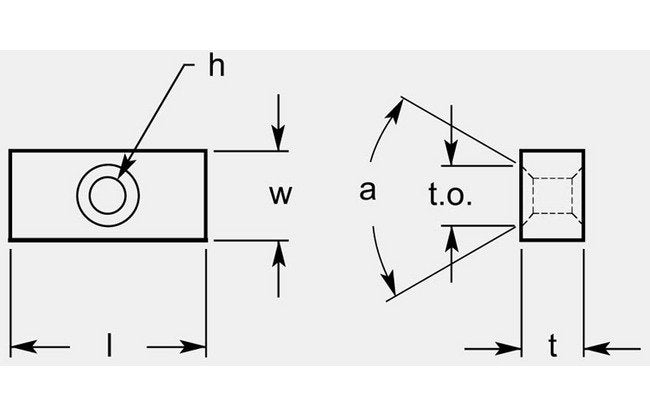

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
40 º
Dimensional Specification Angle A
40 º
Dimensional Specification Hole
0.216 / 0.224 in
Dimensional Specification L
0.642 / 0.662 in
Dimensional Specification Thickness T
0.257 / 0.261 in
Dimensional Specification To
0.291 / 0.295 in
Dimensional Specification Width W
0.512 / 0.530 in
Grade Availability Grade Availability
Available on Request
