Ultra-Met On Edge Milling Blank with Hole, 0.260 / 0.268 in Thickness
Ultra-Met On Edge Milling Blank with Hole, 0.260 / 0.268 in Thickness
SKU:MIL-4eb763
Precision Ultra-Met On Edge Milling Blank with Hole, 0.260 / 0.268 in Thickness - Ideal for gov't & institutional use.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ultra-Met On Edge Milling Blank with Hole, 0.260 / 0.268 in Thickness
$39.99
Quantity: 1
Claim Your Seller Account
Ultra-Met On Edge Milling Blank with Hole, 0.260 / 0.268 in Thickness
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met On Edge Milling Blank with Hole offers precision and durability for machining applications. With a thickness range of 0.260 to 0.268 inches, a hole diameter of 0.162 to 0.174 inches, and a unique angle of 78 degrees, this blank ensures consistent performance. It meets stringent federal procurement standards, making it ideal for governmental and institutional use. Grade availability can be customized upon request, providing tailored solutions for specialized projects.
Product Specifications
Classifications Brands
Ultra-Met®

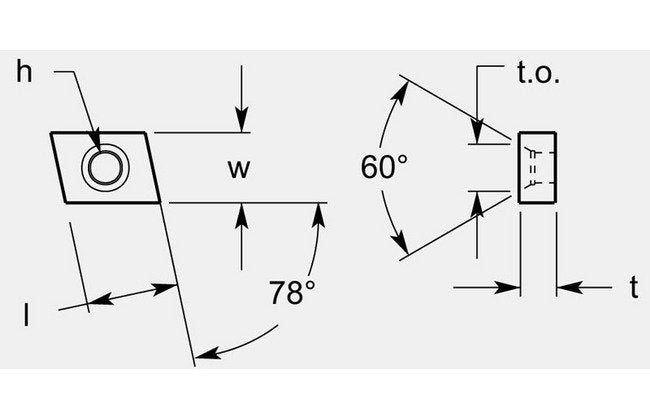

Dimensional Specification Angle A
78 º
Dimensional Specification Hole
0.162 / 0.174 in
Dimensional Specification L
0.510 / 0.522 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Dimensional Specification To
0.257 / 0.269 in
Dimensional Specification Width W
0.385 / 0.395 in
Grade Availability Grade Availability
Available on Request
