Ultra-Met On Edge Milling Blank with Hole, 0.267/0.273 in
Ultra-Met On Edge Milling Blank with Hole, 0.267/0.273 in
SKU:MIL-e41190
Ultra-Met On Edge Milling Blank: Precisely crafted for high-performance machining, with 0.267-0.273 in thickness & 0.174-0.180 in hole diameter
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ultra-Met On Edge Milling Blank with Hole, 0.267/0.273 in
$39.99
Quantity: 1
Claim Your Seller Account
Ultra-Met On Edge Milling Blank with Hole, 0.267/0.273 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met On Edge Milling Blank with Hole is a precision-engineered component designed for high-performance machining applications. With a thickness range of 0.267 to 0.273 inches and a durable hole diameter of 0.174 to 0.180 inches, this milling blank ensures exceptional dimensional accuracy and reliability. Crafted with top-grade materials, this product offers superior stability and longevity, making it ideal for both consumer and institutional buyers in need of quality milling solutions.
Ready to Grow Without Cash Flow Constraints?

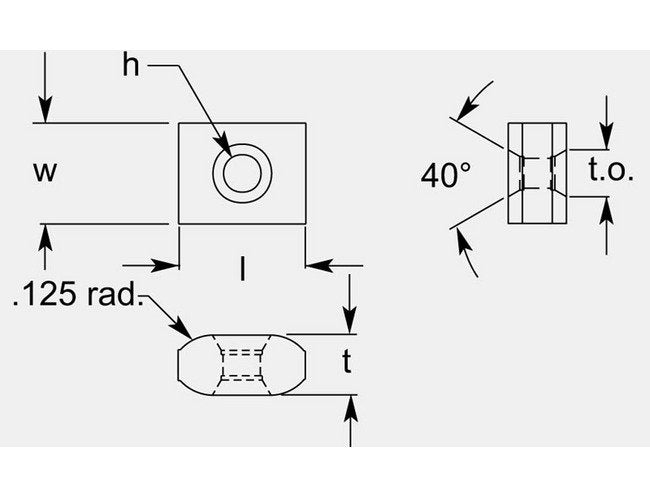

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Angle A
40 º
Dimensional Specification Hole
0.174 / 0.180 in
Dimensional Specification L
0.566 / 0.576 in
Dimensional Specification Thickness T
0.267 / 0.273 in
Dimensional Specification To
0.233 / 0.239 in
Dimensional Specification Width W
0.449 / 0.457 in
Grade Availability Grade Availability
Available on Request
