Ultra-Met On Edge Milling Blank with Hole, 0.309 / 0.315 in
Ultra-Met On Edge Milling Blank with Hole, 0.309 / 0.315 in
SKU:MIL-2793f3
Precision-engineered Ultra-Met On Edge Milling Blank for industrial applications, 0.309-0.315 in thickness, 40-degree angle, and customizable grades.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ultra-Met On Edge Milling Blank with Hole, 0.309 / 0.315 in
$49.99
Quantity: 1
Claim Your Seller Account
Ultra-Met On Edge Milling Blank with Hole, 0.309 / 0.315 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met On Edge Milling Blank with Hole is precision-engineered for superior performance in industrial milling applications. With a thickness range of 0.309 to 0.315 inches and a 40-degree angle, this blank ensures precise cuts and efficient operations. The integrated hole measuring 0.172 to 0.182 inches adds versatility while maintaining structural integrity. Available in custom grades upon request, this milling blank offers unmatched quality and reliability in machining processes.

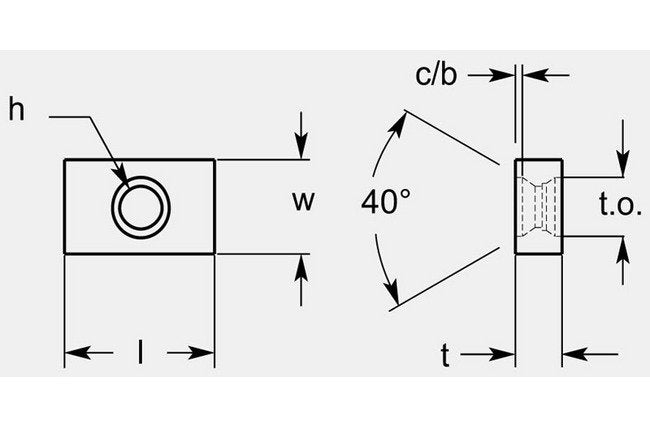

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Angle A
40 º
Dimensional Specification Cb
0.044 / 0.054 in
Dimensional Specification Hole
0.172 / 0.182 in
Dimensional Specification L
0.725 / 0.735 in
Dimensional Specification Thickness T
0.309 / 0.315 in
Dimensional Specification To
0.224 / 0.234 in
Dimensional Specification Width W
0.488 / 0.498 in
Grade Availability Grade Availability
Available on Request
