Ultra-Met On Edge Milling Blank with Hole, 0.322/0.330 in
Ultra-Met On Edge Milling Blank with Hole, 0.322/0.330 in
SKU:MIL-08e2b7
Achieve precision with Ultra-Met On Edge Milling Blank, 0.322/0.330 in thickness. Versatile, durable, and precise for optimal machining.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met On Edge Milling Blank with Hole, 0.322/0.330 in
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met On Edge Milling Blank with Hole, 0.322/0.330 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

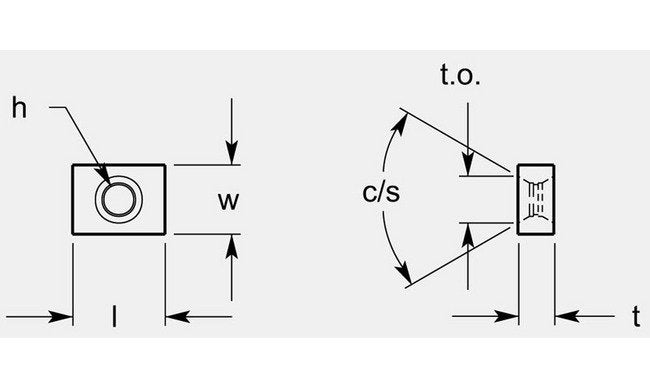

The Ultra-Met On Edge Milling Blank with Hole offers precision and versatility with a thickness range of 0.322 to 0.330 inches. Crafted with a hole diameter of 0.162 to 0.174 inches, this milling blank excels in accuracy and durability. Designed at a 60° C/S angle with a TO measurement of 0.257 to 0.269 inches and a length of 0.640 to 0.650 inches, it ensures high-performance machining. Grade availability is tailored to meet specific requirements, ensuring outstanding results for varying applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Cs
60 º
Dimensional Specification Hole
0.162 / 0.174 in
Dimensional Specification L
0.640 / 0.650 in
Dimensional Specification Thickness T
0.322 / 0.330 in
Dimensional Specification To
0.257 / 0.269 in
Dimensional Specification Width W
0.389 / 0.395 in
Grade Availability Grade Availability
Available on Request
